  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Black Toggle

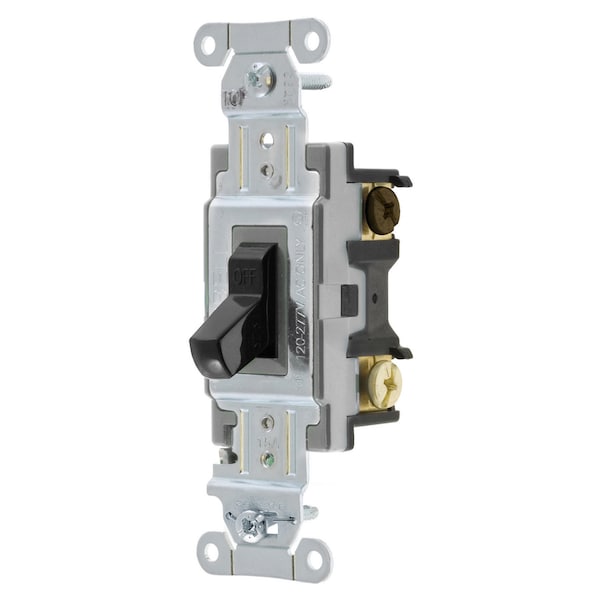

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Black Toggle CS315BK - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Black Toggle

  • Mfr # CS315BK

  • Zoro # G100701798

product price: $6.75
/ea

Key Features

Color
Black
Type
Toggle
Style
Three Way
Height
1.83 in
Width
1.49 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS315BK
Zoro #
G100701798
UPC #
783585154633
Country of Origin
China

Dimensions

Height
1.83 in
Width
1.49 in
Length
4.18 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Item
Three Way Toggle Switch
Color
Black
Type
Toggle
Style
Three Way
Temp. Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Amperage
15 A
Voltage Rating
120-277 VAC
Connectivity
Side Wired Only
Current Rating
15 A
Number Of Poles
Single Pole
Series
General Purpose
Action
SPDT
Material
Nylon
Flammability
UL 94V-2
Contacts
Silver Alloy
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Screws
Brass
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Color
Black
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Top Material
Thermoplastic, Gray
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Material
Nylon
Ground Screw
Brass (Green)
Max. Continuous Current
15A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Auto Grounding Mounting Bridge
Zinc Plated Steel
Item Type
Three Way Toggle Switch
Amperage Rating
15 A
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Current / Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Black
