  11. Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Black Toggle

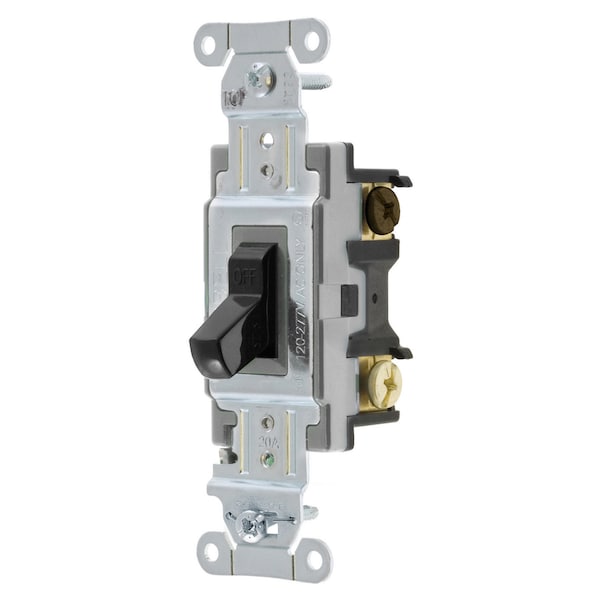

Hubbell Wiring Device-Kellems Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Black Toggle CS320BK - main

Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Black Toggle

  • Mfr # CS320BK

  • Zoro # G700701563

product price: $8.89
/ea

Key Features

Color
Black
Length
4.18 in
Style
Three Way
Height
1.83 in
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS320BK
Zoro #
G700701563
UPC #
783585189185
Country of Origin
China

Dimensions

Length
4.18 in
Height
1.83 in
Width
1.49 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Three Way Toggle Switch
Color
Black
Style
Three Way
Type
Toggle
Current Rating
20 A
Carton Quantity
10
Amperage
20 A
Temp. Rise
30°C maximum at rated current
Action
SPDT
Voltage Rating
120-277 VAC
Series
General Purpose
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Side Wired Only
Material
Nylon
Auto Grounding Mounting Bridge
Zinc Plated Steel
Flammability
UL 94V-2
Max. Continuous Current
20A
Base Material
Thermoplastic, Black
Toggle Color
Black
Toggle Material
Nylon
Top Material
Thermoplastic, Gray
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Contacts
Silver Alloy
Terminal Screws
Brass
Ground Screw
Brass (Green)
Item Type
Three Way Toggle Switch
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Three Way, 20A 120/277V AC, Side Wired, Black
