  6. Toggle Wall Switch, 1 Pole, 1 hp, 20 A, 14 AWG to 10 AWG, 120/277V AC, Screw Terminals, White

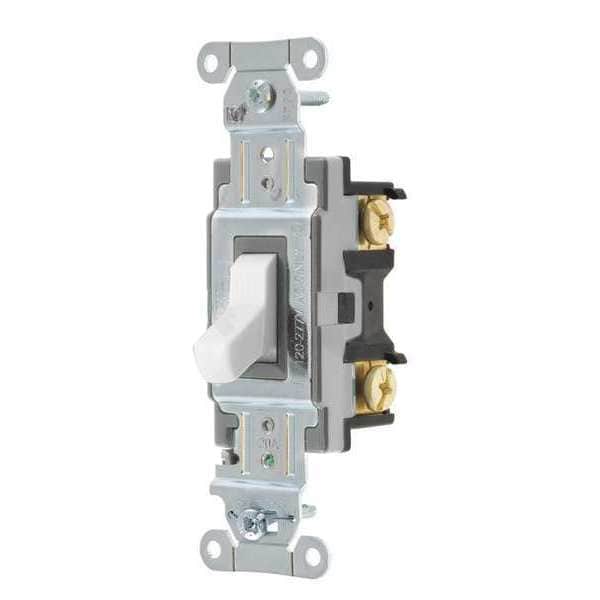

Hubbell Wiring Device-Kellems Toggle Wall Switch, 1 Pole, 1 hp, 20 A, 14 AWG to 10 AWG, 120/277V AC, Screw Terminals, White CSB120W - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Toggle Wall Switch, 1 Pole, 1 hp, 20 A, 14 AWG to 10 AWG, 120/277V AC, Screw Terminals, White

  • Mfr # CSB120W

  • Zoro # G4440226

product price:  $7.02
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB120W
Zoro #
G4440226
UPC #
783585154060
Country of Origin
China

Dimensions

Overall Width
1.5 in
Maximum Wire Size
10 AWG
Overall Height
1.8 in
Minimum Wire Size
14 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Standards
UL Listed
Description/Special Features
Quiet Switch
Rated HP
1
Antimicrobial
No
Voltage
120/277V AC
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Wire Connection Type
Screw Terminals
Market
Commercial
Housing Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Horsepower Rating
1 hp
Current Rating
20 A
Number of Switches
1
Voltage Rating
120/277V AC
Switch Material
Nylon
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Grade
Specification Grade
Max. Continuous Current
20A
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Amperage
20A
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Switch Handle Positions
2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Toggle Color
White
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Wiring Style
Back and Side Wired
Overload
Minimum 4.8 times rated current for 100 cycles

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed
