Triple Connectr, Grn, Ser 16,600VAC/250VDC
Mfr # HBLM3FGN
Zoro # G6488544
product price: $231.99
/ea
Free Shipping & Returns
Key Features
Type
Tees and 3-Fers
Series
16
Male/Female
Male-Female-Female-Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBLM3FGN
Zoro #
G6488544
UPC #
783585112787
Country of Origin
China
Dimensions
Overall Height
5.88 in
Overall Width
1.48 in
Overall Length
5.78 in
Description

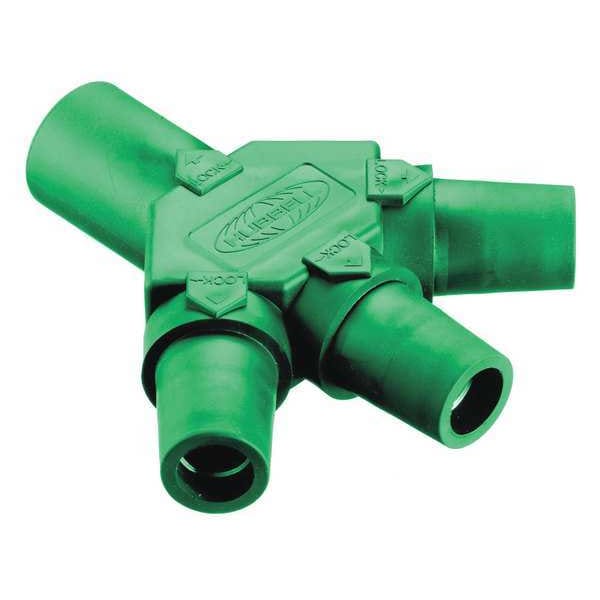

The HUBBELL Triple Connector, Series 16, is a single pole device rated for use in electrical distribution applications requiring up to 400 A AC/DC. Featuring a tri-tap (3-Fer) configuration with one male input and three female outputs, this connector provides three output connections from one input source. It is constructed with an insulated thermoplastic elastomer housing and brass contacts to support demanding temporary power applications as specified by the manufacturer.
Key Features of the HUBBELL Triple Connector:
- Amperage/Current Rating: Rated for up to 400 A AC/DC
- Voltage Rating: Suitable for use at 600V AC or 250V DC
- Configuration: Male-Female-Female-Female (Tri-Tap)
- Compatible Series: Compatible with Series 16 devices
- Material Construction: Brass conductor/contact; thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA 12, 3R, and 4X requirements
- Operating Temperature Range: -40°C to +75°C continuous operation
- Standards Compliance: UL498, UL1691, cUL listed
- Taper nose style compatible with single pole systems
