  6. USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, Ivory

This item is Discontinued.

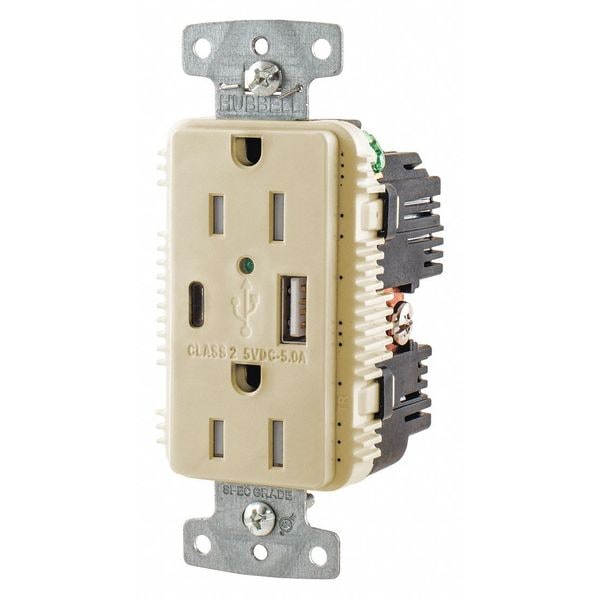

Hubbell Wiring Device-Kellems USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, Ivory USB15AC5I

USB Charger Receptacle, 15 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, Ivory (Discontinued)

  • Mfr # USB15AC5I
  • Zoro # G5861681
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
USB15AC5I
Zoro #
G5861681
UPC #
00883778307164
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.28 in
Overall Depth
1.8 in
Minimum Wire Size
14 AWG

Details

Item
USB Charger Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
15
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Ivory
Wiring Method - Plugs and Receptacles
Back and Side
Number of Poles
2
Number of Wires
3
Power Indicator
Yes
USB Charging Capacity
5.0 A @ 5V DC
Standards
cULus
USB Connector
Type A and C
Phase
Single
Number of USB Ports
2
Amps - Plugs and Receptacles
15
Material of Construction
Nylon
HP
1/2 hp
Tamper Resistance
Yes
Item - Plugs and Receptacles
USB Charger Receptacle
Color
Ivory
Wiring Method
Back, Side
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Voltage Rating
125V AC
Receptacle Type
Duplex
Grounding
Grounded
Electrical Connection Type
Straight Blade
Wire Connection Type
Screw Terminals
Number of Outlets
2
Market
Commercial
Mount Type
Flush
Power Indicating Light
Yes
USB Connection Type
A, C
Resistance Properties
Tamper Resistant
Current Rating
15 A
Maximum Operating Temperature
167 Degrees F
Contact Material
Plated Steel
Housing Material
RTP
NEMA Receptacle Configuration
5-15R
Minimum Operating Temperature
-40 Degrees F
Housing Color
Ivory
Voltage Rating Description
125 V
Style
Style Line Decorator
Type
One Type A, One Type-C Port
Nema Rating
5-15R
Current / Amperage Rating
15 A
Series
Heavy Duty
Grade
Commercial

Description

USB Charger Receptacle, Current Rating 15 A, Electrical Connection Type Straight Blade, Housing Color Ivory, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Grade Commercial, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Material RTP, Maximum Wire Size 10 AWG
