  6. USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, Ivory

This item is Discontinued.

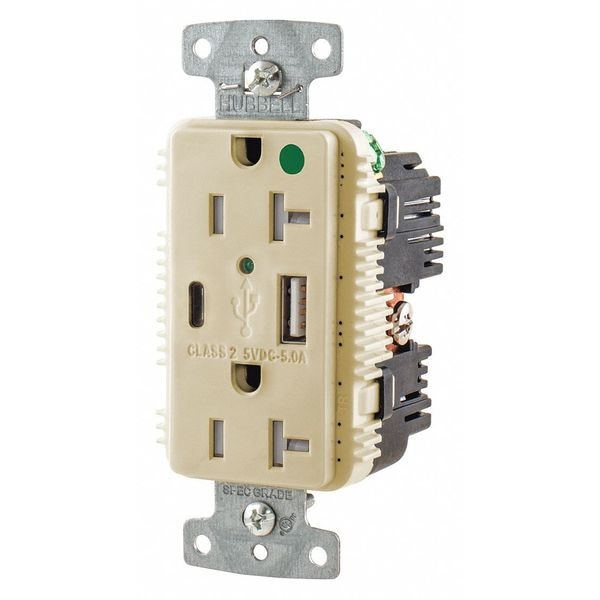

Hubbell Wiring Device-Kellems USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, Ivory USB8300AC5I

USB Charger Receptacle, 20 Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, Ivory (Discontinued)

  • Mfr # USB8300AC5I
  • Zoro # G5867379
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
USB8300AC5I
Zoro #
G5867379
UPC #
00883778307379
Country of Origin
China

Dimensions

Overall Depth
1.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.28 in

Details

Item
USB Charger Receptacle
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Color - Plugs and Receptacles
Ivory
Wiring Method - Plugs and Receptacles
Back and Side
Number of Poles
2
Number of Wires
3
Power Indicator
Yes
USB Charging Capacity
5.0 A @ 5V DC
Standards
cULus
HP
1 hp
Number of USB Ports
2
Tamper Resistance
Yes
Material of Construction
Nylon
USB Connector
Type A and C
Phase
Single
Item - Plugs and Receptacles
USB Charger Receptacle
NEMA Configuration
5-20
Color
Ivory
Wiring Method
Back, Side
Voltage Rating
125V AC
UL 94 Flammability Rating
V-2
Power Indicating Light
Yes
Mount Type
Flush
Maximum Operating Temperature
167 Degrees F
Resistance Properties
Tamper Resistant
Housing Color
Ivory
Horsepower Rating
1 hp
Current Rating
20 A
Grade
Hospital Grade
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees F
Contact Material
Plated Steel
Number of Outlets
2
Receptacle Type
Duplex
Wire Connection Type
Screw Terminals
Housing Material
RTP
NEMA Receptacle Configuration
5-20R
Electrical Connection Type
Straight Blade
USB Connection Type
A, C
Wire Connection Types
Screw Terminals
Nema Rating
5-20R
Type
One Type A, One Type-C Port
Series
Hospital Grade
Style
Style Line Decorator
Current / Amperage Rating
20 A
Voltage Rating Description
125 V

Description

USB Charger Receptacle, Current Rating 20 A, Electrical Connection Type Straight Blade, Housing Color Ivory, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, C, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp, Housing Material RTP, Maximum Wire Size 10 AWG
