  11. Vacancy Sensor, PIR, 1200 sq ft, White
Hubbell Wiring Device-Kellems Vacancy Sensor, PIR, 1200 sq ft, White WS1001NW - main

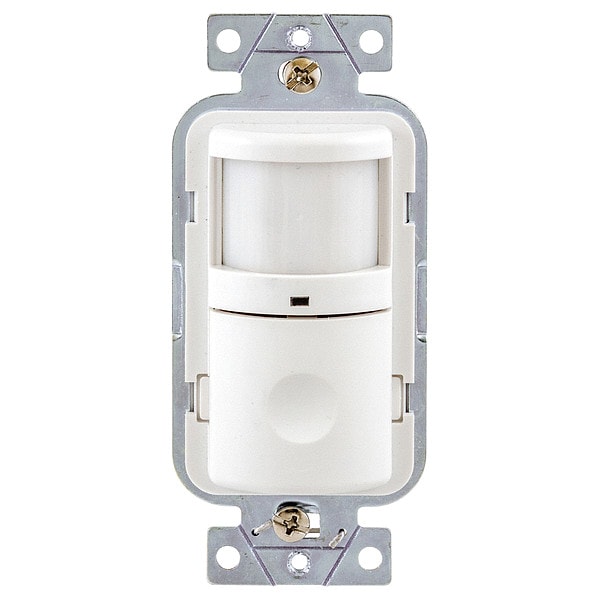

Vacancy Sensor, PIR, 1200 sq ft, White

  • Mfr # WS1001NW

  • Zoro # G8492967

product price: $63.39
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
1,200 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS1001NW
Zoro #
G8492967
UPC #
783585256283
Country of Origin
Taiwan, Province of China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Overall Width
1.82 in
Minimum Mounting Height
42 in
Overall Height
1.62 in
Maximum Mounting Height
54 in
Overall Depth
4.15 in
Mounting Height
42 to 54 inches above floor
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Item
Vacancy Sensor with Nightlight
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
20 sec to 30 min
Time Delay Adjustment Method - Motion Sensor
Manual
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Timer Range
20 sec. to 30 min.
Sensor Type
Passive Infrared
Watts @ 120V
500
Item - Motion Sensing and Dimming
Vacancy Sensor with Nightlight
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Time Delay
Manual
Color
White
Voltage
120V AC
Description/Special Features
Night Light, Manual-On Operation, Tamper Resistant Lens
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Standards
cULus Listed to UL773A
Coverage
1200 sq. ft.
Installation Type
Wall
Includes
Night Light, Nylon Wall Plate
Viewing Angle
180 Degrees
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Included
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty
5 yr
Dimming Method
No Dimming
Maximum Operating Temperature
122 Degrees F
Nightlight
Yes
Installation Location
Wall
Number of Buttons
1
Series
H-Moss
Neutral Required
No
Includes Dimming Switch
Dimming Switch Not Included
Minimum Time Delay
20 sec
Fan Rated
No
Dimming Type
No Dimming
Includes Motion Sensor
Yes
Horsepower Rating
3/16 hp
Illuminated
Yes
Maximum Coverage Area
1,200 sq ft
Load Rating @ 120V AC
600W (Incandescent)
Includes Wall Plate
Wall Plate Included
Maximum Time Delay
30 min
Time Delay Adjustment Method
Manual
Sensor Operation
Vacancy
Coverage Angle
180 Degrees
Passive Infrared
Red LED
Housing
Flame retardant UL 94 V-0 ABS
Load Capacity
Resistive or Inductive (1000W Incandescent), 1/6 hp 277V AC - 5.1A, Inductive (1400W Fluorescent)
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Snap-On Wallplate
RCW1W
Front Press Switch
ON/OFF
SS Wallplate
SS26
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Mounting Strap
Steel
Lens
Polyethylene
Service Switch
OFF (service); ON (normal operation)
Operating Voltage
120V AC

Description

Vacancy Sensor with Nightlight, Number of Buttons 1, Sensor Operation Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 600W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color White, Nightlight Yes, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
