  11. Vacancy Sensor, PIR, 1200 sq ft, White

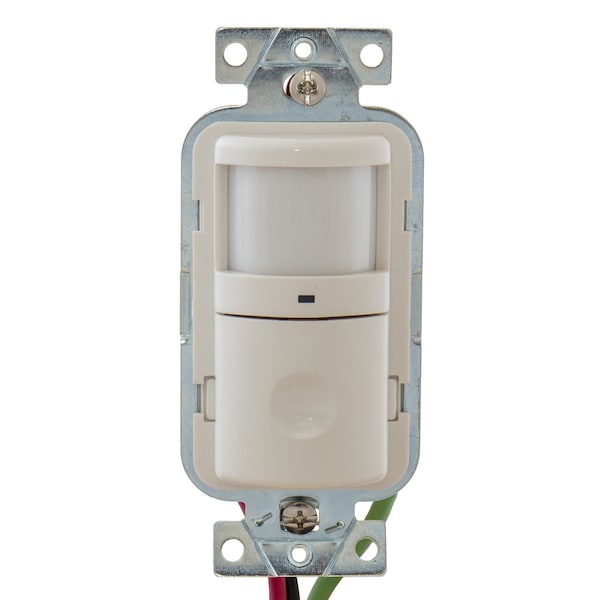

Hubbell Wiring Device-Kellems Vacancy Sensor, PIR, 1200 sq ft, White WS1001W - main

Vacancy Sensor, PIR, 1200 sq ft, White

  • Mfr # WS1001W

  • Zoro # G5238572

product price: $55.22
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
1,200 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS1001W
Zoro #
G5238572
UPC #
783585256252
Country of Origin
Taiwan, Province of China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
3 ft 6 in to 4 ft 6 in
Overall Depth
4.15 in
Maximum Mounting Height
54 in
Minimum Mounting Height
42 in
Overall Width
1.82 in
Overall Height
1.62 in
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)
Mounting Height
42 to 54 inches above floor

Details

Item
Vacancy Sensor
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
20 sec to 30 min
Time Delay Adjustment Method - Motion Sensor
Manual
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, LED
Sensor Type
Passive Infrared
Description/Special Features
Manual-On Operation, Tamper Resistant Lens
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Watts @ 120V
500/1000
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Installation Type
Wall
Viewing Angle
180 Degrees
Voltage
120V AC
Color
White
Includes
Nylon Wall Plate
Standards
cULus Listed to UL773A
Item - Motion Sensing and Dimming
Vacancy Sensor
Coverage
1200 sq. ft.
Timer Range
20 sec. to 30 min.
Time Delay
Manual
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Included
Neutral Required
No
Dimming Method
No Dimming
Maximum Coverage Area
1,200 sq ft
Includes Wall Plate
Wall Plate Included
Installation Location
Wall
Manufacturer Warranty
5 yr
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Vacancy
Horsepower Rating
3/16 hp
Fan Rated
No
Minimum Time Delay
20 sec
Number of Buttons
1
Coverage Angle
180 Degrees
Maximum Time Delay
30 min
Series
H-Moss
Includes Motion Sensor
Yes
Load Rating @ 120V AC
600W (Incandescent)
Dimming Type
No Dimming
Nightlight
No
Includes Dimming Switch
Dimming Switch Not Included
Maximum Operating Temperature
122 Degrees F
Time Delay Adjustment Method
Manual
Service Switch
OFF (service); ON (normal operation)
Snap-On Wallplate
RCW1W
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Housing
Flame retardant UL 94 V-0 ABS
Lens
Polyethylene
Passive Infrared
Red LED
SS Wallplate
SS26
Front Press Switch
ON/OFF
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Mounting Strap
Steel
Operating Voltage
120V AC

Description

Vacancy Sensor, Number of Buttons 1, Sensor Operation Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 600W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
