  11. Vacancy Sensor, PIR, 900 sq ft, Ivory

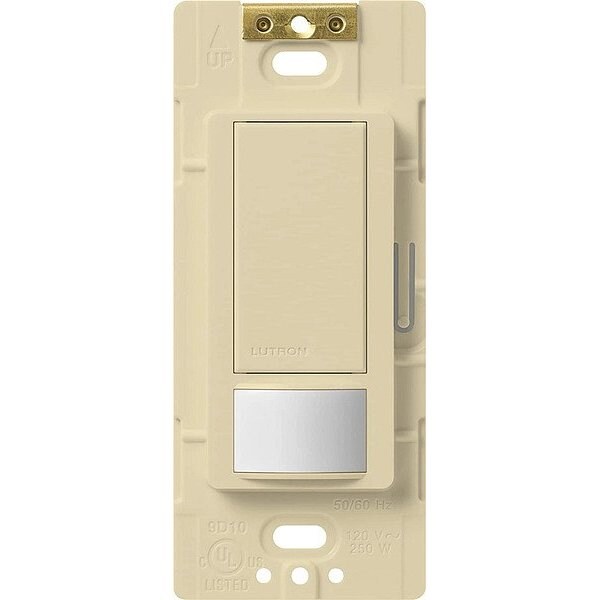

Lutron Vacancy Sensor, PIR, 900 sq ft, Ivory MS-VPS5M-IV - main

Vacancy Sensor, PIR, 900 sq ft, Ivory

  • Mfr # MS-VPS5M-IV

  • Zoro # G4727055

product price: $36.29
/ea

Key Features

Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Coverage at Suggested Mounting Height
900 sq ft
Operating Voltage - Motion Sensing and Dimming
120 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MS-VPS5M-IV
Zoro #
G4727055
UPC #
027557983693
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
900 sq ft
Suggested Mounting Height - Motion Sensor
4 ft
Overall Depth
0.31 in
Overall Height
4.69 in
Maximum Mounting Height
4 ft
Overall Width
2.94 in

Details

Item
Vacancy Sensor
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Passive Infrared (PIR)
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120 V AC
Color - Motion Sensing and Dimming
White
Time Delay - Motion Sensor
1 min, 15 min, 30 min, 5 min
Time Delay Adjustment Method - Motion Sensor
Adjustable
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, Halogen, Incandescent, LED
Voltage
120V AC
Includes
Wire Nuts
Standards
NOM, UL Listed
Item - Motion Sensing and Dimming
Vacancy Sensor
Color
Ivory
Watts @ 120V
600
Sensor Type
Passive Infrared
Installation Type
Switch Box
For Use With
Incandescent, Halogen, MLV, ELV, CFL, LED, Magnetic Fluorescent, and Electronic Fluorescent
Max. Capacity @ 120VAC
3.0A (Fan Motor), 5A (CFL, ELV, Fluorescent, Halogen, Incandescent, LED, MLV)
Viewing Angle
180 Degrees
Coverage
900 sq. ft.
Timer Range
1, 5, 15, 30 min.
Time Delay
Adjustable
Communication Method
Hard Wired
Number of Gangs
1
Wall Plate
Not Included
Manufacturer Warranty
5 yr
Maximum Detection Distance
30 ft
Coverage Angle
180 Degrees
Minimum Coverage Area
400 sq ft
Includes Motion Sensor
Yes
Maximum Time Delay
30 min
Includes Dimming Switch
Dimming Switch Not Included
Minimum Operating Temperature
32 Degrees F
Dimming Method
No Dimming
Time Delay Adjustment Method
Adaptive
Installation Location
Wall
Series
Maestro
Fan Rated
Yes
Load Rating @ 120V AC
3.0A (Fan 120V), 5A (All Lighting Loads 120V Only)
Compatible with Series
Universal
Sensor Operation
Photocell, Vacancy
Number of Buttons
1
Nightlight
No
Rated Frequency
50/60 Hz
Minimum Time Delay
1 min
Dimming Type
No Dimming
Neutral Required
No
Maximum Coverage Area
900 sq ft
Includes Wall Plate
Wall Plate Not Included
Maximum Operating Temperature
104 Degrees F
Operating Voltage
120V AC

Description

Vacancy Sensor, Number of Buttons 1, Sensor Operation Photocell, Vacancy, Compatible with Series Universal, Lighting Technology Fluorescent, Halogen, Incandescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 3.0A (Fan 120V), 5A (All Lighting Loads 120V Only), Communication Method Hard Wired, Maximum Coverage Area 900 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
