  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Almond, 1,200 sq ft, Fluorescent, LED

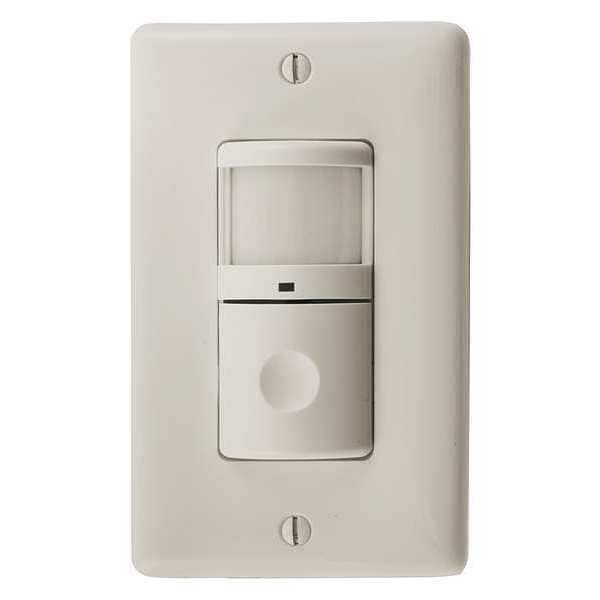

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Almond, 1,200 sq ft, Fluorescent, LED WS2000LA - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Almond, 1,200 sq ft, Fluorescent, LED

  • Mfr # WS2000LA

  • Zoro # G5238475

product price: $73.14
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
For Use With
Fluorescent and Incandescent Lighting Loads
Time Delay
Manual
Sensor Type
Passive Infrared
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS2000LA
Zoro #
G5238475
UPC #
783585256856
Country of Origin
Taiwan, Province of China

Dimensions

Maximum Mounting Height
54 in
Overall Width
1.82 in
Overall Depth
4.15 in
Overall Height
1.62 in
Minimum Mounting Height
42 in
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Item
Occupancy Sensor
For Use With
Fluorescent and Incandescent Lighting Loads
Time Delay
Manual
Sensor Type
Passive Infrared
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent)
Description/Special Features
3-Way Capable, Selectable Manual/Auto-On Operation
Color
Almond
Watts @ 120V
1000
Standards
cULus Listed to UL773A
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
Includes
Nylon Wall Plate, Photocell
Lighting Technology
Fluorescent, LED
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent)
Watts @ 277V
1800
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Communication Method
Hard Wired
Number of Gangs
1
Includes Wall Plate
Wall Plate Included
Number of Buttons
1
Coverage Angle
180 Degrees
Maximum Coverage Area
1,200 sq ft
Includes Dimming Switch
Dimming Switch Not Included
Installation Location
Wall Mount
Neutral Required
No
Time Delay Adjustment Method
Manual
Load Rating @ 120V AC
1,000W, Incandescent
Series
H-Moss
Load Rating @ 277V AC
1,000W (Incandescent)
Maximum Operating Temperature
122 Degrees F
Includes Motion Sensor
Yes
Manufacturer Warranty
5 yr
Maximum Time Delay
30 min
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Occupancy, Vacancy
Horsepower Rating
3/16 hp
Fan Rated
No
Nightlight
No
Minimum Time Delay
20 sec
Ambient Light
Photocell, 10 to 500 foot candles
Housing
Flame retardant UL 94 V-0 ABS
SS Wallplate
SS26
Lens
Polyethylene
Passive Infrared
Red LED
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Service Switch
OFF (service); vacancy (manual-ON); occupancy (auto-ON)
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Mounting Strap
Steel
Snap-On Wallplate
RCW1LA
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,000W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color Light Almond, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
