  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent

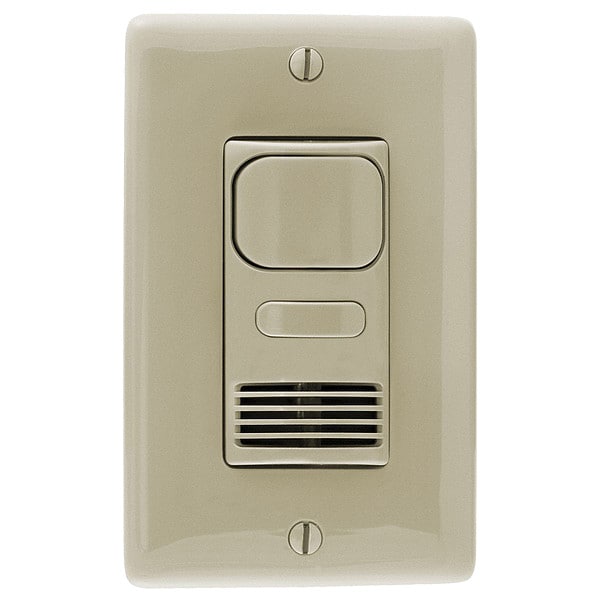

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent AD2000I1 - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent

  • Mfr # AD2000I1

  • Zoro # G9489916

product price: $320.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Sensor Type
Dual Technology
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
Color
Ivory
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AD2000I1
Zoro #
G9489916
UPC #
783585413235
Country of Origin
China

Dimensions

Maximum Mounting Height
54 in
Overall Depth
4.13 in
Overall Width
1.69 in
Minimum Mounting Height
42 in
Overall Height
1.71 in

Details

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Sensor Type
Dual Technology
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
Color
Ivory
Coverage Angle - Motion Sensor
180 Degrees
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Lighting Technology
Fluorescent, Incandescent
Viewing Angle
180 Degrees
Watts @ 120V
800/1000
Item
Occupancy Sensor
Watts @ 277V
1800
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Time Delay
Adaptive/Digital
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
Communication Method
Hard Wired
Number of Gangs
1
Rated Frequency
50/60 Hz
Includes Motion Sensor
Yes
Maximum Coverage Area
1,000 sq ft
Manufacturer Warranty
5 yr
Coverage Type
Small Motion
Minimum Operating Temperature
32 Degrees F
Number of Buttons
1
Neutral Required
No
Load Rating @ 277V AC
1,800W (Fluorescent, Incandescent)
Series
H-Moss
Time Delay Adjustment Method
Adaptive
Coverage Angle
180 Degrees
Load Rating @ 120V AC
1,000W, Fluorescent, 800W, Incandescent
Includes Wall Plate
Wall Plate Not Included
Maximum Operating Temperature
104 Degrees F
Maximum Time Delay
30 min
Nightlight
No
Fan Rated
Yes
Includes Dimming Switch
Dimming Switch Not Included
Sensor Operation
Occupancy, Vacancy
Installation Location
Wall Mount
Minimum Time Delay
4 min
Sensing Indicator
Passive Infrared, Red LED. Ultrasonic, Green LED.
Ambient Light
Adjustable ambient light override, 10 to 500 foot candles
Front Press Switch
Auto/Manual "ON" operating mode
Load Capacity
Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts
Sensitivity
Adaptive 0% to 100%
Housing
High impact plastic (UL-94-5V)
Operating Temperature
32°F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity
Power Supply
120/277V AC, 50/60Hz
Wire Leads
#18 AWG stranded wire, 6" long with½" stripped ends
Lens
Dual element pyrometer and 12 element cylindrical hard
Wallplate
NP26I, SS26, RCW1I
Mounting Strap
Plated steel
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,000W (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
