  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent

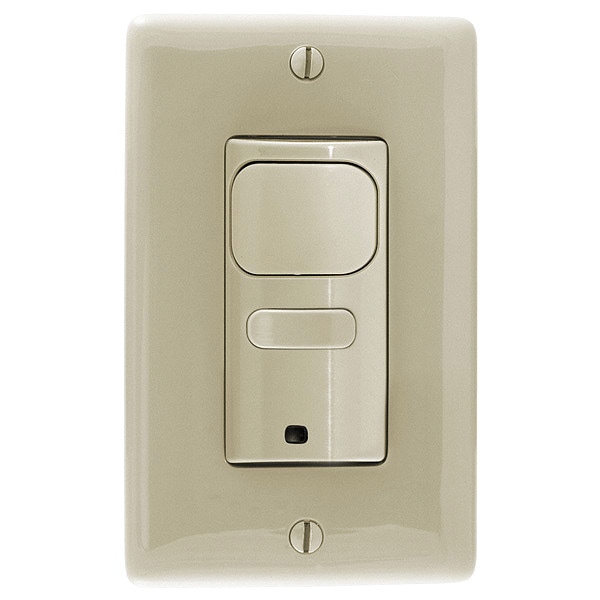

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent AP2000I1 - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,000 sq ft, Fluorescent, Incandescent

  • Mfr # AP2000I1

  • Zoro # G9490022

product price: $163.35
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
4 to 30 min
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AP2000I1
Zoro #
G9490022
UPC #
783585413518
Country of Origin
China

Dimensions

Maximum Mounting Height
54 in
Overall Depth
4.13 in
Minimum Mounting Height
42 in
Overall Width
1.69 in
Overall Height
1.71 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
4 to 30 min
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Color
Ivory
Lighting Technology
Fluorescent, Incandescent
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Item
Occupancy Sensor
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared
Watts @ 277V
1800
Watts @ 120V
800/1000
Time Delay
Adaptive/Digital
Communication Method
Hard Wired
Number of Gangs
1
Sensor Operation
Occupancy, Vacancy
Maximum Coverage Area
1,000 sq ft
Installation Location
Wall Mount
Load Rating @ 120V AC
1,000W, Fluorescent, 800W, Incandescent
Maximum Time Delay
30 min
Load Rating @ 277V AC
1,800W (Fluorescent, Incandescent)
Includes Wall Plate
Wall Plate Not Included
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Includes Motion Sensor
Yes
Includes Dimming Switch
Dimming Switch Not Included
Coverage Type
Small Motion
Minimum Time Delay
4 min
Coverage Angle
180 Degrees
Number of Buttons
1
Series
H-Moss
Rated Frequency
50/60 Hz
Neutral Required
No
Time Delay Adjustment Method
Adaptive, Digital
Fan Rated
Yes
Manufacturer Warranty
5 yr
Nightlight
No
Wire Leads
#18 AWG stranded wire, 6" long with½" stripped ends
Power Supply
120/277V AC, 50/60Hz
Lens
Dual element pyrometer and 12 element cylindrical hard
Housing
High impact plastic (UL-94-5V)
Sensing Indicator
Passive Infrared, Red LED
Sensitivity
Adaptive 0% to 100%
Mounting Strap
Plated steel
Wallplate
NP26I, SS26, RCW1I
Operating Temperature
32° F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity
Ambient Light
Adjustable ambient light override, 10 to 500 foot candles
Front Press Switch
Auto/Manual "ON" operating mode
Load Capacity
Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,000W (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
