  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED

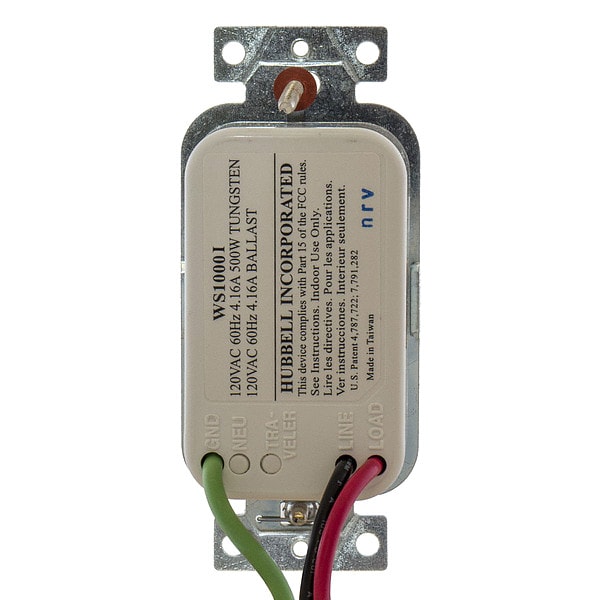

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED WS1000I - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, Ivory, 1,200 sq ft, Fluorescent, LED

  • Mfr # WS1000I

  • Zoro # G5238502

product price: $55.22
/ea

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Standards
cULus Listed to UL773A
Viewing Angle
180 Degrees
Time Delay
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WS1000I
Zoro #
G5238502
UPC #
783585256214
Country of Origin
Taiwan, Province of China

Dimensions

Minimum Mounting Height
42 in
Overall Depth
4.15 in
Maximum Mounting Height
54 in
Overall Width
1.82 in
Overall Height
1.62 in
Dimensions
Face 2.59"H x 1.30"W, 0.61"D (from wall out)

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
20 sec to 30 min
Standards
cULus Listed to UL773A
Viewing Angle
180 Degrees
Time Delay
Manual
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent, LED)
Coverage Angle - Motion Sensor
180 Degrees
Item
Occupancy Sensor
Color
Ivory
Description/Special Features
Auto-On Operation, Tamper Resistant Lens
Lighting Technology
Fluorescent, LED
Includes
Nylon Wall Plate
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Watts @ 120V
500/1000
Sensor Type
Passive Infrared
Communication Method
Hard Wired
Number of Gangs
1
Sensor Operation
Occupancy, Vacancy
Minimum Time Delay
20 sec
Minimum Operating Temperature
32 Degrees F
Includes Wall Plate
Wall Plate Included
Time Delay Adjustment Method
Manual
Fan Rated
No
Neutral Required
No
Includes Motion Sensor
Yes
Includes Dimming Switch
Dimming Switch Not Included
Load Rating @ 120V AC
600W, Incandescent
Series
H-Moss
Maximum Operating Temperature
122 Degrees F
Maximum Time Delay
30 min
Coverage Angle
180 Degrees
Horsepower Rating
3/16 hp
Maximum Coverage Area
1,200 sq ft
Manufacturer Warranty
5 yr
Nightlight
No
Installation Location
Wall Mount
Number of Buttons
1
Lens
Polyethylene
Snap-On Wallplate
RCW1I
Housing
Flame retardant UL 94 V-0 ABS
Service Switch
OFF (service); ON (normal operation)
Mounting Strap
Steel
Operating Temperature
32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
Front Press Switch
ON/OFF
Storage
-40°F to 150°F (-40°C to 65°C); 20% to 90% non condensing relative humidity
Passive Infrared
Red LED
SS Wallplate
SS26
Load Capacity
Incandescent - 0 to 1000 watts, 120V; Ballast - 0 to 1000 watts, 277V; Horsepower rating 1/6
Operating Voltage
120V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, LED, Operating Voltage 120V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 600W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color Ivory, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming, Includes Dimming Switch Dimming Switch Not Included
