  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent

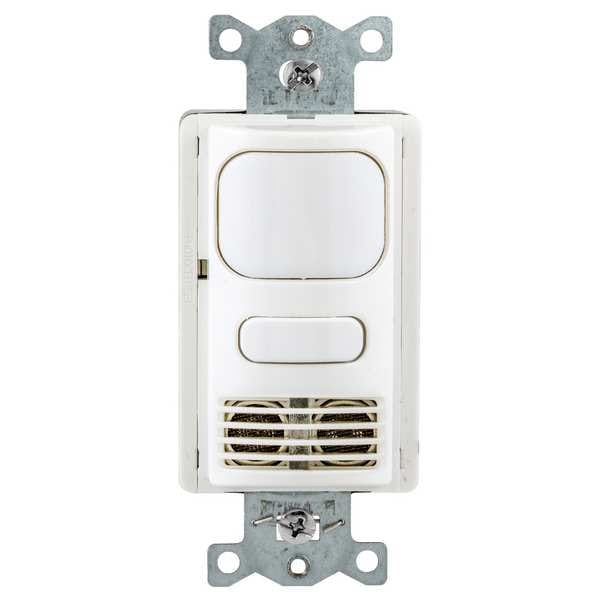

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent AD2000W1 - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent

  • Mfr # AD2000W1

  • Zoro # G9489925

product price: $290.35
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
Watts @ 277V
1800
Time Delay
Adaptive/Digital
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AD2000W1
Zoro #
G9489925
UPC #
783585413310
Country of Origin
China

Dimensions

Overall Depth
4.13 in
Maximum Mounting Height
54 in
Overall Width
1.69 in
Minimum Mounting Height
42 in
Overall Height
1.71 in

Details

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Description/Special Features
(1) Relay, Adaptive Technology, Install and Forget Operation
Watts @ 277V
1800
Time Delay
Adaptive/Digital
Lighting Technology
Fluorescent, Incandescent
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item
Occupancy Sensor
Watts @ 120V
800/1000
Sensor Type
Dual Technology
Color
White
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Coverage Angle - Motion Sensor
180 Degrees
Viewing Angle
180 Degrees
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Communication Method
Hard Wired
Number of Gangs
1
Maximum Operating Temperature
104 Degrees F
Load Rating @ 120V AC
1,000W, Fluorescent, 800W, Incandescent
Manufacturer Warranty
5 yr
Includes Motion Sensor
Yes
Fan Rated
Yes
Time Delay Adjustment Method
Adaptive
Maximum Coverage Area
1,000 sq ft
Installation Location
Wall Mount
Sensor Operation
Occupancy, Vacancy
Includes Wall Plate
Wall Plate Not Included
Maximum Time Delay
30 min
Nightlight
No
Number of Buttons
1
Minimum Operating Temperature
32 Degrees F
Series
H-Moss
Coverage Angle
180 Degrees
Coverage Type
Small Motion
Rated Frequency
50/60 Hz
Load Rating @ 277V AC
1,800W (Fluorescent, Incandescent)
Neutral Required
No
Minimum Time Delay
4 min
Includes Dimming Switch
Dimming Switch Not Included
Ambient Light
Adjustable ambient light override, 10 to 500 foot candles
Housing
High impact plastic (UL-94-5V)
Operating Temperature
32°F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity
Sensitivity
Adaptive 0% to 100%
Power Supply
120/277V AC, 50/60Hz
Wallplate
NP26W, SS26, RCW1W
Load Capacity
Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts
Lens
Dual element pyrometer and 12 element cylindrical hard
Wire Leads
#18 AWG stranded wire, 6" long with½" stripped ends
Front Press Switch
Auto/Manual "ON" operating mode
Sensing Indicator
Passive Infrared, Red LED. Ultrasonic, Green LED.
Mounting Strap
Plated steel
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,000W (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
