  11. Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent

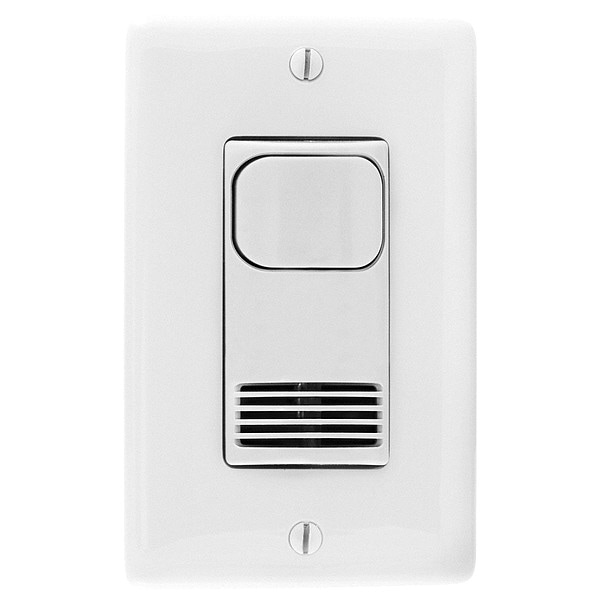

Hubbell Wiring Device-Kellems Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent AD2000W1N - main

Wall Mount Sensor, Occupancy, Vacancy, Hard Wired, White, 1,000 sq ft, Fluorescent, Incandescent

  • Mfr # AD2000W1N

  • Zoro # G9490013

product price: $275.40
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Watts @ 277V
1800
Description/Special Features
(1) Relay, No Button, Adaptive Technology, Install and Forget Operation
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AD2000W1N
Zoro #
G9490013
UPC #
783585413327
Country of Origin
China

Dimensions

Maximum Mounting Height
54 in
Overall Depth
4.13 in
Overall Width
1.69 in
Minimum Mounting Height
42 in
Overall Height
1.71 in

Details

Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
4 to 30 min
Max. Capacity @ 120VAC
1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
Watts @ 277V
1800
Description/Special Features
(1) Relay, No Button, Adaptive Technology, Install and Forget Operation
Color
White
Viewing Angle
180 Degrees
Time Delay
Adaptive/Digital
Watts @ 120V
800/1000
Sensor Type
Dual Technology
Standards
ASHRAE 90.1, CEC Title 24 Complaint, cULus Listed
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, Incandescent
Item
Occupancy Sensor
For Use With
Incandescent, LED and Fluorescent Lighting Loads
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Max. Capacity @ 277VAC
1800W (Fluorescent, Incandescent, LED)
Communication Method
Hard Wired
Number of Gangs
1
Time Delay Adjustment Method
Adaptive
Includes Motion Sensor
Yes
Maximum Time Delay
30 min
Maximum Operating Temperature
104 Degrees F
Sensor Operation
Occupancy, Vacancy
Manufacturer Warranty
5 yr
Includes Dimming Switch
Dimming Switch Not Included
Coverage Angle
180 Degrees
Minimum Time Delay
4 min
Fan Rated
Yes
Load Rating @ 277V AC
1,800W (Fluorescent, Incandescent)
Number of Buttons
0
Minimum Operating Temperature
32 Degrees F
Coverage Type
Small Motion
Nightlight
No
Series
H-Moss
Neutral Required
No
Maximum Coverage Area
1,000 sq ft
Installation Location
Wall Mount
Rated Frequency
50/60 Hz
Includes Wall Plate
Wall Plate Not Included
Load Rating @ 120V AC
1,000W, Fluorescent, 800W, Incandescent
Lens
Dual element pyrometer and 12 element cylindrical hard
Sensitivity
Adaptive 0% to 100%
Power Supply
120/277V AC, 50/60Hz
Housing
High impact plastic (UL-94-5V)
Ambient Light
Adjustable ambient light override, 10 to 500 foot candles
Load Capacity
Incandescent - 0 to 800 watts, 120V AC Ballast - 0 to 1000 watts, 277V AC Ballast 0 to 1800 watts
Sensing Indicator
Passive Infrared, Red LED. Ultrasonic, Green LED.
Wallplate
NP26W, SS26, RCW1W
Operating Temperature
32°F to 104°F (0°C to 40°C); 0% to 95% non-condensing relative humidity
Wire Leads
#18 AWG stranded wire, 6" long with½" stripped ends
Mounting Strap
Plated steel
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 0, Sensor Operation Occupancy, Vacancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,000W (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
