  11. Wall Switch, 1-Pole, 120/277V, 15A, Brown

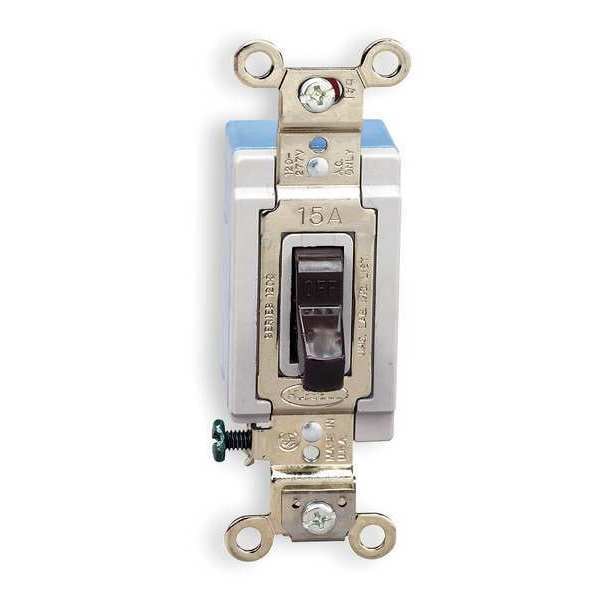

Hubbell Wiring Device-Kellems Wall Switch, 1-Pole, 120/277V, 15A, Brown HBL1201 - main

Wall Switch, 1-Pole, 120/277V, 15A, Brown

  • Mfr # HBL1201

  • Zoro # G3088111

product price: $20.29
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1201
Zoro #
G3088111
UPC #
783585430003
Country of Origin
China

Dimensions

Overall Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Overall Height
1.9 in
Length
4.06 in
Height
1.87 in
Width
1.31 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1/2
Standards
UL Listed
Antimicrobial
No
Voltage
120/277V AC
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Number of Switches
1
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Current Rating
15 A
Voltage Rating
120/277V AC
Market
Industrial
Switch Material
Nylon
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Maximum Operating Temperature
75 Degrees C
Style
Single Pole
Type
Toggle
Max. Continuous Current
15A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Temperature Rise
30°C maximum at rated current
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Switch Handle Positions
2
Max. Working Voltage
277V AC
Amperage
15A
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Switch Grade
Industrial
Toggle Color
Brown
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Wiring Style
Back and Side Wired
Flammability
UL 94V-2
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series
Extra Heavy Duty
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Current / Amperage Rating
15 A
Voltage Rating Description
120-277 VAC
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Amperage Rating
15 A
Application
Back and Side Wired
Temperature Rise - Max.
30°C maximum at rated current

Description

Wall Switch, Color Brown, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
