  11. Wall Switch, 1-Pole, 120/277V, 15A, Brown

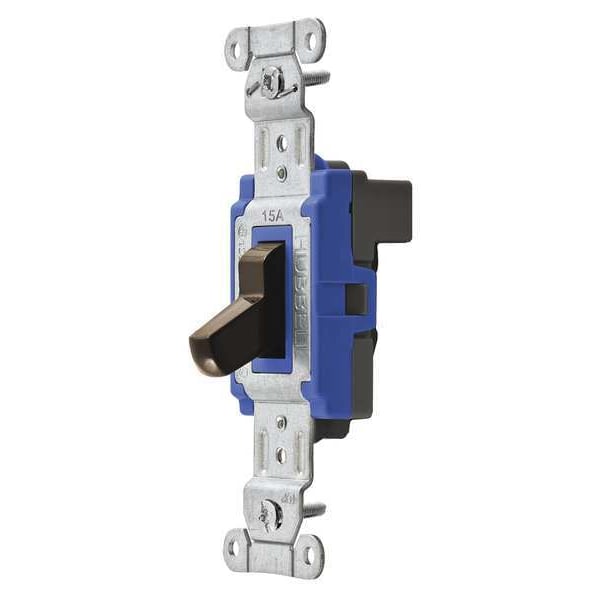

Hubbell Wiring Device-Kellems Wall Switch, 1-Pole, 120/277V, 15A, Brown SNAP1201BR - main

Wall Switch, 1-Pole, 120/277V, 15A, Brown

  • Mfr # SNAP1201BR

  • Zoro # G4571637

product price: $10.29
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201BR
Zoro #
G4571637
UPC #
783585186467
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Width
1.3 in
Height
1.74 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Rated HP
1/2 to 2
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Standards
UL Listed
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Voltage Rating
120/277V AC
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Current Rating
15 A
Number of Switches
1
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Modular Wiring
Horsepower Rating
2 hp
Type
Toggle
Style
Single Pole
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
Uses SNAPConnect Connector
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Brown
Flammability
UL 94V-2
Face Material
Thermoplastic, Blue
Contacts
Silver Alloy
Terminals
Brass
Max. Continuous Current
15A
Base Material
Thermoplastic, Black
Toggle Material
Thermoplastic
Temperature Rise
30°C maximum at rated current
Material
Thermoplastic
Number Of Poles
Single Pole
Current / Amperage Rating
15 A
Amperage Rating
15 A
Voltage Rating Description
120-277 VAC
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Item Type
Single Pole Toggle Switch
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current
Industry Standard(s)
UL Listed
Series
General Purpose

Description

Wall Switch, Color Brown, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
