  11. Wall Switch, 1-Pole, 120/277V, 15A, Ivory

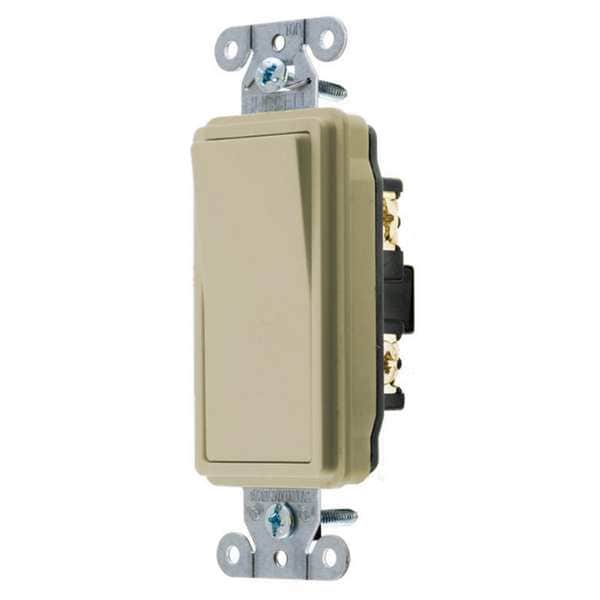

Hubbell Wiring Device-Kellems Wall Switch, 1-Pole, 120/277V, 15A, Ivory DS115I - main

Wall Switch, 1-Pole, 120/277V, 15A, Ivory

  • Mfr # DS115I

  • Zoro # G3141521

product price: $13.91
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS115I
Zoro #
G3141521
UPC #
783585108308
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.5 in
Overall Width
1.4 in
Maximum Wire Size
10 AWG
Width
1.43 in
Length
4.28 in
Height
1.54 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Rated HP
1/2
Standards
UL Listed
Antimicrobial
No
Voltage
120/277V AC
Resistance Properties
Impact Resistant
Horsepower Rating
1/2 hp
Housing Material
Thermoplastic
Current Rating
15 A
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Number of Switches
1
Voltage Rating
120/277V AC
Market
Commercial
Maximum Operating Temperature
75 Degrees C
Grounding
Grounded
Features
Automatic Self-Grounding Staple
Type
Rocker/Decorator
Style
Single Pole
Max. Continuous Current
15A
Switch Handle Positions
2
Max. Working Voltage
277V AC
Amperage
15A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Wiring Style
Back and Side Wired
Product Type
Toggle-switches
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
UL Listed and CSA Certified
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Rocker Color
Ivory
Switch Grade
Decorator Series
Temperature Rise
30°C maximum at rated current
Current / Amperage Rating
15 A
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Style Line Decorator Switch
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Amperage Rating
15 A
Material
Thermoplastic
Connectivity
Back and Side Wired
Series
General Purpose

Description

Wall Switch, Color Ivory, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic, Market Commercial
