  11. Wall Switch, 1-Pole, Wiring Modul, 20A, Ivry

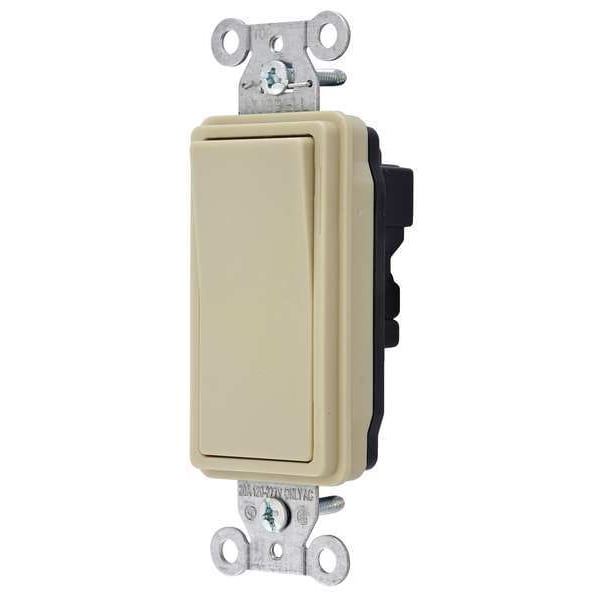

Hubbell Wiring Device-Kellems Wall Switch, 1-Pole, Wiring Modul, 20A, Ivry SNAP2121I - main

Wall Switch, 1-Pole, Wiring Modul, 20A, Ivry

  • Mfr # SNAP2121I

  • Zoro # G4615231

product price: $34.75
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2121I
Zoro #
G4615231
UPC #
783585189734
Country of Origin
United States

Dimensions

Overall Height
1.5 in
Overall Width
1.4 in
Height
1.54 in
Length
4.28 in
Width
1.44 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Antimicrobial
No
Standards
UL Listed
Rated HP
1 to 2
Wire Connection Type
Modular Wiring
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Number of Switches
1
Horsepower Rating
2 hp
Market
Industrial
Resistance Properties
Impact Resistant
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Voltage Rating
120/277V AC
Style
Single Pole
Type
Rocker/Decorator
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Red
Terminals
Brass
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Rocker Material
Thermoplastic
Terminal Accommodations
Uses SNAPConnect Connector
Toggle Color
Ivory
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Contacts
Silver Alloy
Base Material
Thermoplastic, Black
Overload
Minimum 4.8 times rated current for 100 cycles
Amperage Rating
20 A
Voltage Rating Description
120-277 VAC
Item Type
Single Pole Style Line Decorator Switch
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
20 A
Series
General Purpose
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current

Description

Wall Switch, Color Ivory, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
