  11. Wall Switch, 120/277V, 20A, 3-Position

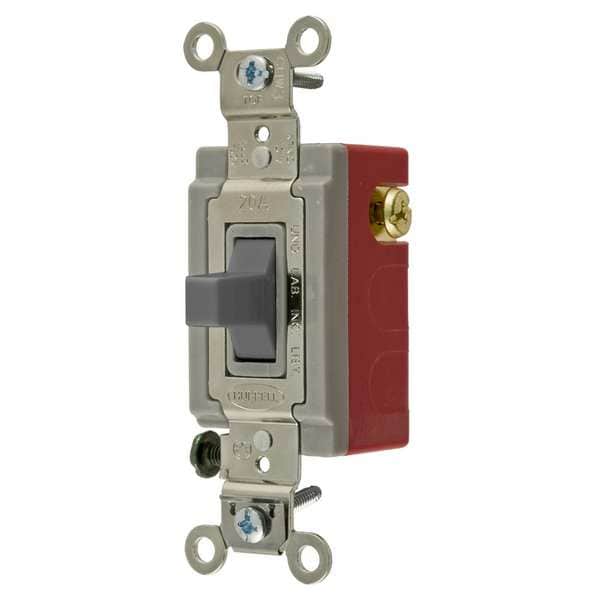

Hubbell Wiring Device-Kellems Wall Switch, 120/277V, 20A, 3-Position HBL1557GY - main

Wall Switch, 120/277V, 20A, 3-Position

  • Mfr # HBL1557GY

  • Zoro # G2010382

product price: $51.65
/ea

Key Features

Switch Type
Single Pole/Double Throw
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1557GY
Zoro #
G2010382
UPC #
783585432847
Country of Origin
China

Dimensions

Overall Height
1.9 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Width
1.3 in
Width
1.31 in
Length
4.06 in
Height
1.89 in
Dimensions
4.06 in x 1.31 in x 1.89 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
Single Pole/Double Throw
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Momentary
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Antimicrobial
No
Rated HP
1
Voltage
120/277V AC
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Switch Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Current Rating
20 A
Horsepower Rating
1 hp
Number of Switches
1
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
Voltage Rating
120/277V AC
Market
Industrial
Type
Toggle
Style
Single Pole Double Throw
Amperage
20A
Nylon Wall Plate
NP1GY
Listing and Certifications
UL Listed and CSA Certified
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Max. Working Voltage
277V AC
Switch Grade
Industrial
Product Type
Toggle-switches
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
Gray
Temperature Rise
30°C maximum at rated current
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Wiring Style
Back and Side Wired
Switch Handle Positions
3
Max. Continuous Current
20A
Voltage Rating Description
120-277 VAC
Action
SPDT
Series
Extra Heavy Duty
Temperature Rise - Max.
30°C maximum at rated current
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Contact Configuration
Momentary
Amperage Rating
20 A
Number Of Poles
Single Pole
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired

Description

Wall Switch, Color Gray, Current Rating 20 A, Switch Function Momentary, Switch Type Single Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
