  11. Wall Switch, 20A, Red, 1 HP, 3-Way Switch

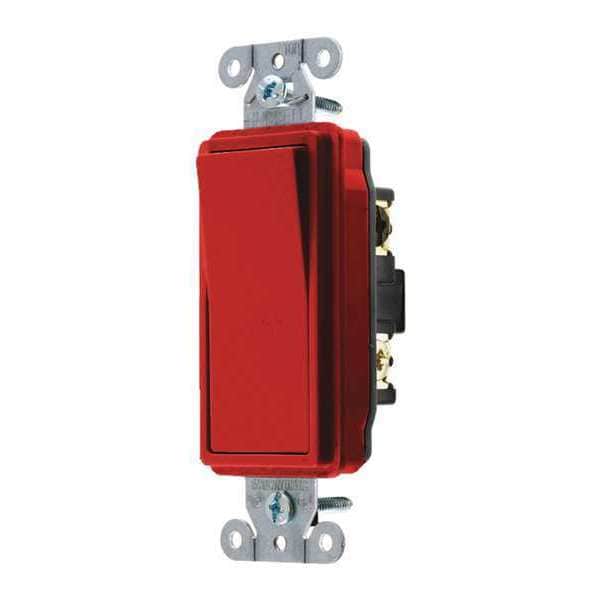

Hubbell Wiring Device-Kellems Wall Switch, 20A, Red, 1 HP, 3-Way Switch DS320R - main

Wall Switch, 20A, Red, 1 HP, 3-Way Switch

  • Mfr # DS320R

  • Zoro # G4440007

product price: $32.47
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS320R
Zoro #
G4440007
UPC #
783585187907
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Width
1.4 in
Overall Height
1 in
Width
1.41 in
Length
3.91 in
Height
1.01 in
Wire Size
#14 AWG to #10 AWG
Dimensions
3.91 in x 1.41 in x 1.01 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Rated HP
1
Description/Special Features
Quiet Switch
Voltage Rating
120/277V AC
Features
Automatic Self-Grounding Staple
Number of Switches
1
Horsepower Rating
1 hp
Market
Commercial
Current Rating
20 A
Maximum Operating Temperature
167 Degrees F
Grounding
Grounded
Wire Connection Type
Screw Terminals
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Style
Three Way
Type
Rocker/Decorator
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Ground Screw
Brass (Green)
Mounting Bridge
Nickel Plated Steel with Auto Ground Staple
Temperature Rise
30°C maximum at rated current
Rocker Material
Thermoplastic
Flammability
UL 94V-2
Contacts
Silver Alloy
Max. Continuous Current
20A
Terminal Screws
Brass
Rocker Color
Red
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Material
Thermoplastic
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Action
SPDT
Current / Amperage Rating
20 A
Number Of Poles
Single Pole
Amperage Rating
20 A
Industry Standard(s)
UL Listed
Item Type
Three Way Style Line Decorator Switch
Series
General Purpose

Description

Wall Switch, Color Red, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic
