Shop HUBBELL WIRING DEVICE-KELLEMS

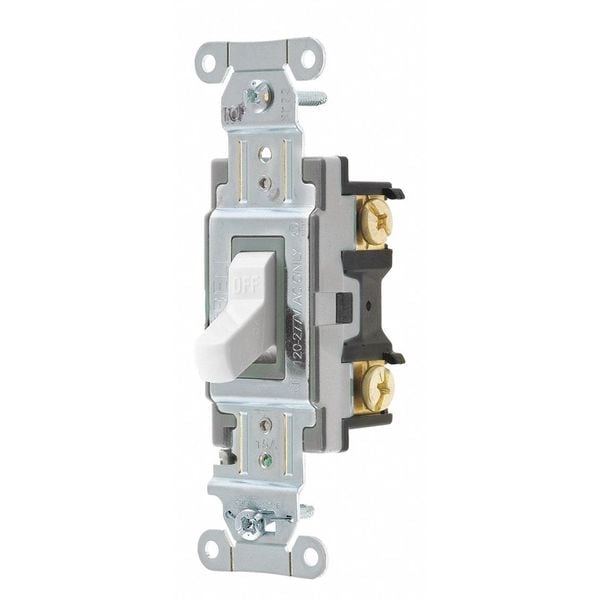

Wall Switch, 15A, Wht, 1/2 HP, 1-Pole Switch

  • Mfr # CSB115W

  • Zoro # G4440180

product price:
$
5.87
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB115W
Zoro #
G4440180
UPC #
783585153780
Country of Origin
China

Dimensions

Overall Height
1.8 in
Minimum Wire Size
14 AWG
Overall Width
1.5 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Commercial
Rated HP
1/2
Standards
UL Listed
Description/Special Features
Quiet Switch
Antimicrobial
No
Voltage
120/277V AC
Current Rating
15 A
Number of Switches
1
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Market
Commercial
Wire Connection Type
Screw Terminals
Housing Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Switch Material
Nylon
Wiring Style
Back and Side Wired
Max. Continuous Current
15A
Switch Handle Positions
2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Switch Grade
Specification Grade
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Toggle Color
White
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Overload
Minimum 4.8 times rated current for 100 cycles
Product Type
Toggle-switches
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Amperage
15A
Temperature Rise
30°C maximum at rated current
Features
Commercial grade toggle switch with screw terminals
Nightlight
No
Illuminated
No
Grounding
Grounded

Description

Wall Switch, Color White, Current Rating 15 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed
