Shop BRYANT

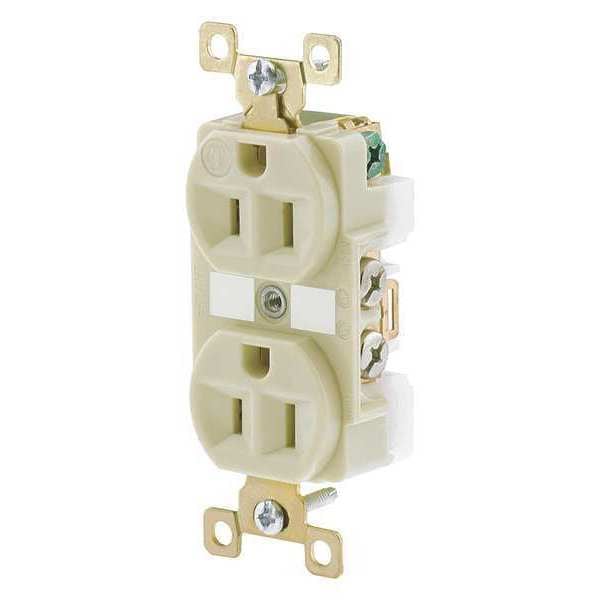

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BRY5262I

  • Zoro # G4438318

product price:  $7.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BRY5262I
Zoro #
G4438318
UPC #
781786005044
Country of Origin
China

Dimensions

Width
1.54 in
Height
1.16 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Overall Depth
1.2 in
Face Plate Width
1.5 in
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Mounting Type
Flush
Application Environment
Harsh and Heavy Use Industrial
Sub-Category
Duplex Receptacles
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Power Indicator
No
Tamper Resistant
No
Surge Suppression
No
Voltage
125VAC
Corrosion Resistant
No
Outlet Type
Duplex
Market
Commercial, Industrial
GFCI
No
For Location
Indoor
Polarized
Yes
Cover Type
No Cover
Grade
Federal Specification
Includes
Mounting Hardware
Contact Material
Brass
Surge Protection
No
Housing Material
Nylon
Includes Mounting Hardware
Yes
AFCI
No
Connection Orientation
Straight
Horsepower Rating
1/2 hp
Application
Extra Heavy Duty Industrial Specification Grade
Style
Finder Groove Face
Nema Rating
5-15R
Wattage
1875
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Number of Wall Plates Included
0
Number of Outlets
2
IP Rating
IP20

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
