  11. Wall Switch, 20A, Brown, 1 HP, 3-Way Switch

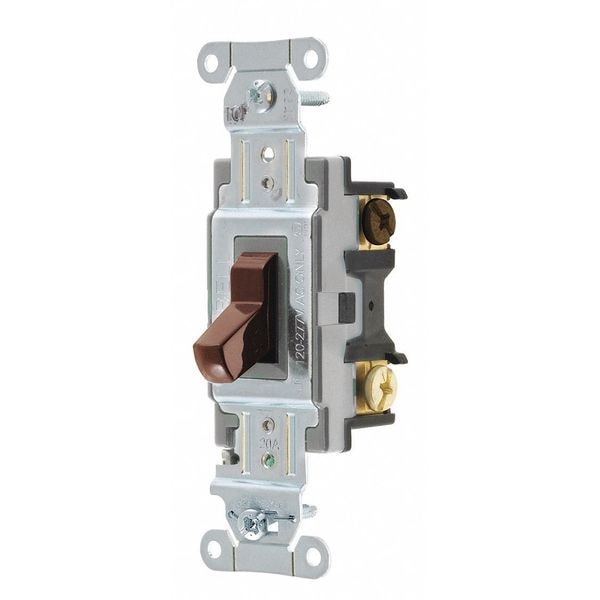

Hubbell Wiring Device-Kellems Wall Switch, 20A, Brown, 1 HP, 3-Way Switch CSB320 - main

Wall Switch, 20A, Brown, 1 HP, 3-Way Switch

  • Mfr # CSB320

  • Zoro # G4440110

product price: $8.78
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB320
Zoro #
G4440110
UPC #
783585154213
Country of Origin
China

Dimensions

Overall Height
1.8 in
Overall Width
1.5 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Width
1.49 in
Length
4.18 in
Height
1.83 in
Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Rated HP
1
Standards
UL Listed
Antimicrobial
No
Description/Special Features
Quiet Switch
Voltage
120/277V AC
Number of Switches
1
Voltage Rating
120/277V AC
Current Rating
20 A
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
Market
Commercial
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Housing Material
Nylon
Switch Material
Nylon
Style
Three Way
Type
Toggle
Switch Grade
Specification Grade
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Max. Working Voltage
277V AC
Product Type
Toggle-switches
Switch Handle Positions
2
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Wiring Style
Back and Side Wired
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Toggle Color
Brown
Amperage
20A
Action
SPDT
Industry Standard(s)
UL Listed
Item Type
Three Way Commercial Toggle Switch
Connectivity
Back and Side Wired
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
20 A
Series
General Purpose
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Material
Nylon

Description

Wall Switch, Color Brown, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Housing Material Nylon, Market Commercial
