  11. Wall Switch, 3-Way, 120/277V, 30A, Brn, Toggl

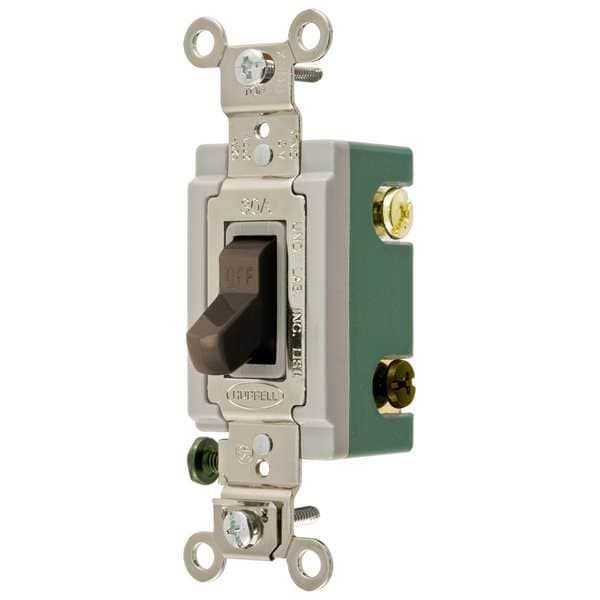

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 30A, Brn, Toggl HBL3033 - main

Wall Switch, 3-Way, 120/277V, 30A, Brn, Toggl

  • Mfr # HBL3033

  • Zoro # G2650882

product price: $56.29
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
30 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3033
Zoro #
G2650882
UPC #
783585434629
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.9 in
Maximum Wire Size
10 AWG
Overall Width
1.3 in
Width
1.31 in
Length
4.06 in
Height
1.87 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
30 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
2
Standards
UL Listed
Antimicrobial
No
Voltage
120/277V AC
Wire Connection Type
Screw Terminals
Current Rating
30 A
Market
Industrial
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Voltage Rating
120/277V AC
Number of Switches
1
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Maximum Operating Temperature
75 Degrees C
Switch Material
Nylon
Style
Three Way
Type
Toggle
Overload
Minimum 4.8 times rated current for 100 cycles
Wiring Style
Back and Side Wired
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
30A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
UL Listed and CSA Certified
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
Brown
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Grade
Industrial
Amperage
30A
Switch Handle Positions
2
Product Type
Toggle-switches
Flammability
UL 94V-2
Action
SPDT
Connectivity
Back and Side Wired
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
30 A
Voltage Rating Description
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Series
Extra Heavy Duty
Number Of Poles
Single Pole
Current / Amperage Rating
30 A
Industry Standard(s)
UL Listed
Application
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 30A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Wall Switch, Color Brown, Current Rating 30 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
