  11. Wall Switch, 4-Way, 120/277V, 20A, Brn, Toggl

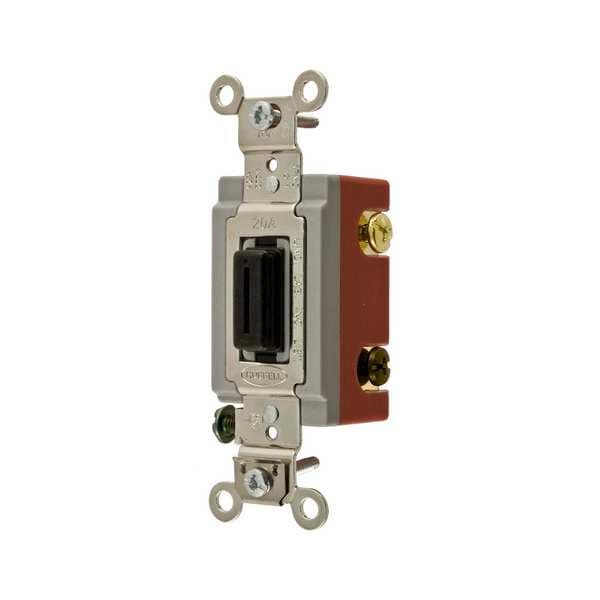

Hubbell Wiring Device-Kellems Wall Switch, 4-Way, 120/277V, 20A, Brn, Toggl HBL1224L - main

Wall Switch, 4-Way, 120/277V, 20A, Brn, Toggl

  • Mfr # HBL1224L

  • Zoro # G1694131

product price: $90.49
/ea
Free Shipping & Returns

Key Features

Switch Type
4-Way
Switch Style
Locking
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1224L
Zoro #
G1694131
UPC #
783585432106
Country of Origin
China

Dimensions

Overall Width
1.3 in
Maximum Wire Size
10 AWG
Overall Height
1.1 in
Minimum Wire Size
14 AWG
Height
1.13 in
Width
1.31 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.13 in

Details

Item
Wall Switch
Switch Type
4-Way
Switch Style
Locking
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
Locking
Yes
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Standards
UL Listed
Antimicrobial
No
Rated HP
1
Voltage
120/277V AC
Voltage Rating
120/277V AC
Current Rating
20 A
Features
Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring
Number of Switches
1
Market
Industrial
Resistance Properties
Impact Resistant
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Locking Style
Straight Key
Type
Locking
Style
Four Way
Flammability
UL 94V-2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type
Toggle-switches
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Wiring Style
Back and Side Wired
Switch Grade
Industrial
Amperage
20A
Key Guide Color
Black
Switch Handle Positions
2
Temperature Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Back and Side Wired
Voltage Rating Description
120-277 VAC
Action
DPDT
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Application
Back and Side Wired
Number Of Poles
Double Pole
Series
Extra Heavy Duty

Description

Wall Switch, Color Black, Current Rating 20 A, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Straight Key, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Locking, Wire Connection Type Screw Terminals
