  11. Wall Switch, 4-Way, 120/277V, 20A, Gry, Toggl

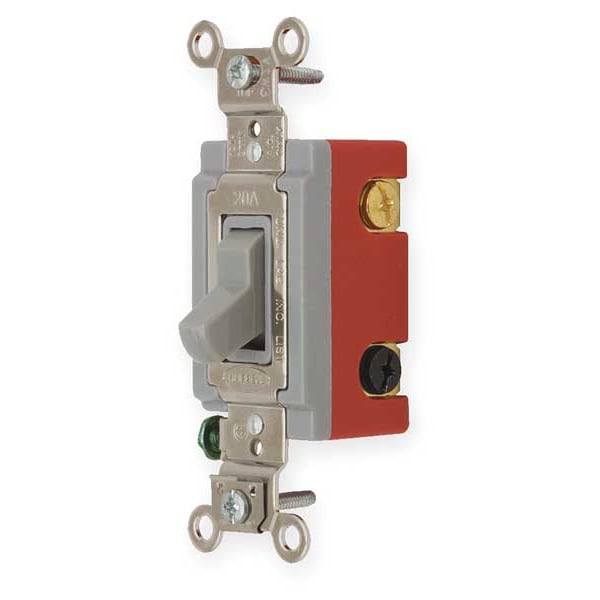

Hubbell Wiring Device-Kellems Wall Switch, 4-Way, 120/277V, 20A, Gry, Toggl HBL1224GY - main

Wall Switch, 4-Way, 120/277V, 20A, Gry, Toggl

  • Mfr # HBL1224GY

  • Zoro # G2634825

product price: $74.19
/ea

Key Features

Switch Type
4-Way
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1224GY
Zoro #
G2634825
UPC #
783585432069
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Overall Height
1.9 in
Height
1.87 in
Width
1.31 in
Length
4.06 in
Dimensions
4.06 in x 1.31 in x 1.87 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Wall Switch
Switch Type
4-Way
Switch Style
Toggle
Amps AC
20 A
Color
Gray
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Rated HP
1
Standards
UL Listed
Voltage
120/277V AC
Horsepower Rating
1 hp
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Wire Connection Type
Screw Terminals
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Current Rating
20 A
Number of Switches
1
Switch Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Maximum Operating Temperature
167 Degrees F
Style
Four Way
Type
Toggle
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A
Switch Handle Positions
2
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Max. Working Voltage
277V AC
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Temperature Rise
30°C maximum at rated current
Switch Grade
Industrial
Product Type
Toggle-switches
Toggle Color
Gray
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Wiring Style
Back and Side Wired
Flammability
UL 94V-2
Amperage
20A
Series
Extra Heavy Duty
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Number Of Poles
Double Pole
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired
Application
Back and Side Wired
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Action
DPDT
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC

Description

Wall Switch, Color Gray, Current Rating 20 A, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
