  11. Wall Switch, Red, 1 HP, 1-Pole Switch

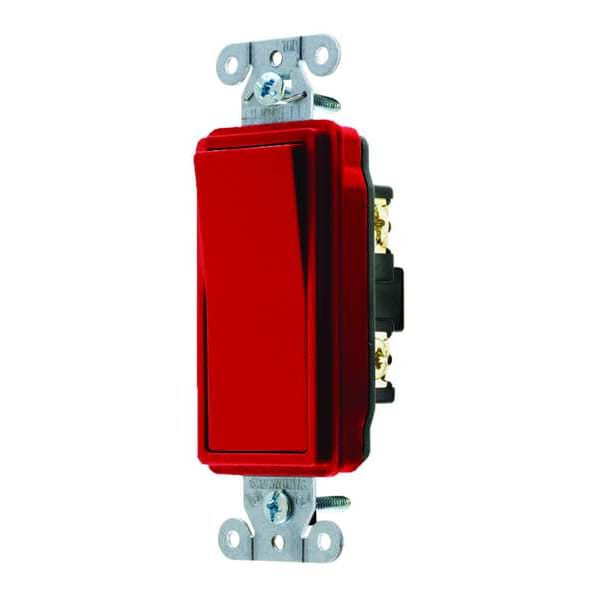

Hubbell Wiring Device-Kellems Wall Switch, Red, 1 HP, 1-Pole Switch DS120R - main

Wall Switch, Red, 1 HP, 1-Pole Switch

  • Mfr # DS120R

  • Zoro # G4440059

product price: $21.80
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS120R
Zoro #
G4440059
UPC #
783585187891
Country of Origin
China

Dimensions

Overall Height
1.5 in
Minimum Wire Size
14 AWG
Overall Width
1.4 in
Maximum Wire Size
10 AWG
Height
1.54 in
Length
4.28 in
Width
1.43 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.28 in x 1.43 in x 1.54 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Rated HP
1
Description/Special Features
Quiet Switch
Antimicrobial
No
Standards
UL Listed
Grounding
Grounded
Market
Commercial
Wire Connection Types
Screw Terminals
Wire Connection Type
Screw Terminals
Resistance Properties
Impact Resistant
Number of Switches
1
Voltage Rating
120/277V AC
Horsepower Rating
1 hp
Maximum Operating Temperature
75 Degrees C
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Features
Automatic Self-Grounding Staple
For Market
Commercial Grade
Current Rating
20 A
Type
Rocker/Decorator
Style
Single Pole
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Rocker Color
Red
Max. Working Voltage
277V AC
Mounting Bridge
Nickel Plated Steel with Auto Ground Staple
Rocker Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Screws
Brass
Ground Screw
Brass (Green)
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Overload
Minimum 4.8 times rated current for 100 cycles
Series
General Purpose
Current / Amperage Rating
20 A
Connectivity
Back and Side Wired
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating
20 A
Material
Thermoplastic
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Item Type
Single Pole Style Line Decorator Switch
Number Of Poles
Single Pole

Description

Wall Switch, Color Red, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic
