Shop HUBBELL WIRING DEVICE-KELLEMS

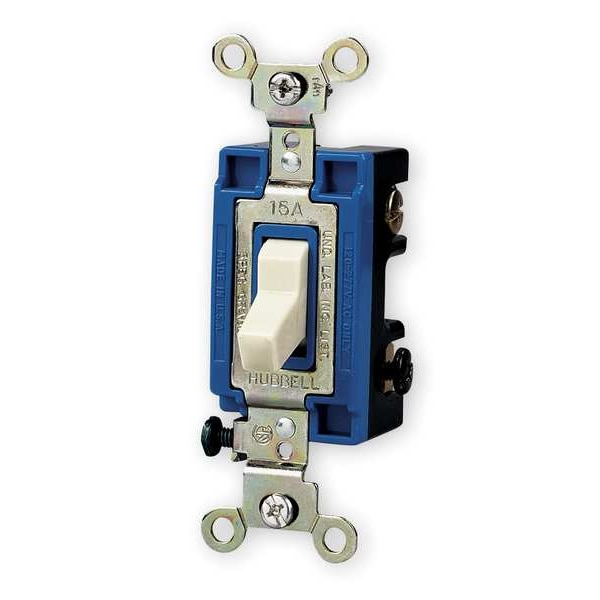

Wall Swtch, 1-Pol, 120/277V, 15A, Ivry, Toggl

  • Mfr # CS115I

  • Zoro # G1685634

product price:
$
4.49
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS115I
Zoro #
G1685634
UPC #
783585901053
Country of Origin
China

Dimensions

Overall Width
1.5 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Height
1.8 in
Height
1.83 in
Length
4.18 in
Width
1.49 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Side
Application Environment
Commercial
Antimicrobial
No
Rated HP
1/2
Standards
UL Listed
Maximum Operating Temperature
167 Degrees F
Wire Connection Type
Screw Terminals
Current Rating
15 A
Housing Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees F
Switch Material
Nylon
Voltage Rating
120/277V AC
Number of Switches
1
Market
Commercial
Type
Toggle
Style
Single Pole
Toggle Color
Ivory
Approvals
UL, CSA
Temperature Rise
30°C maximum at rated current
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Product Type
AC Commercial Switches
Max. Working Voltage
277V AC
Actuator Type
Toggle
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Rating
15A 120/277V
Max. Continuous Current
15A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Amperage Rating
15 A
Material
Nylon
Current / Amperage Rating
15 A
Item Type
Single Pole Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Connectivity
Side Wired Only
Series
General Purpose
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Industry Standard(s)
UL Listed
Features
Commercial grade toggle switch with screw terminals
Grounding
Grounded
Illuminated
No
Nightlight
No

Description

Wall Switch, Color Ivory, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1/2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Housing Material Nylon, Market Commercial
