  11. Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Toggl

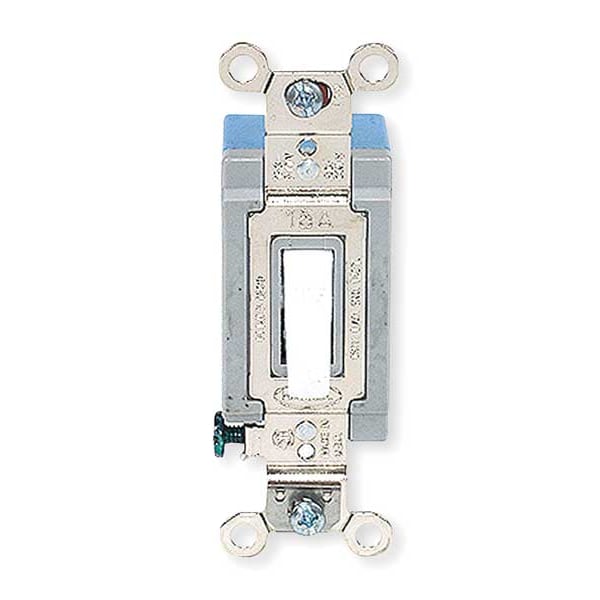

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Toggl HBL1201W - main

Wall Swtch, 1-Pole, 120/277V, 15A, Wht, Toggl

  • Mfr # HBL1201W

  • Zoro # G2133372

product price: $18.89
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1201W
Zoro #
G2133372
UPC #
783585430140
Country of Origin
China

Dimensions

Overall Height
1.9 in
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Width
1.31 in
Height
1.87 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.87 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1/2
Antimicrobial
No
Standards
UL Listed
Voltage
120/277V AC
Maximum Operating Temperature
75 Degrees C
Wire Connection Type
Screw Terminals
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Horsepower Rating
1/2 hp
Number of Switches
1
Voltage Rating
120/277V AC
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Minimum Operating Temperature
-40 Degrees F
Switch Material
Nylon
Market
Industrial
Current Rating
15 A
Style
Single Pole
Type
Toggle
Wiring Style
Back and Side Wired
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
15A
Product Type
Toggle-switches
Switch Grade
Industrial
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Working Voltage
277V AC
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Switch Handle Positions
2
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Amperage
15A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Color
White
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Connectivity
Back and Side Wired
Industry Standard(s)
UL Listed
Number Of Poles
Single Pole
Series
Extra Heavy Duty
Amperage Rating
15 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
15 A
Application
Back and Side Wired

Description

Wall Switch, Color White, Current Rating 15 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1/2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals
