  11. Wall Swtch, 1-Pole, 120/277V, 20A, Brn, Toggl

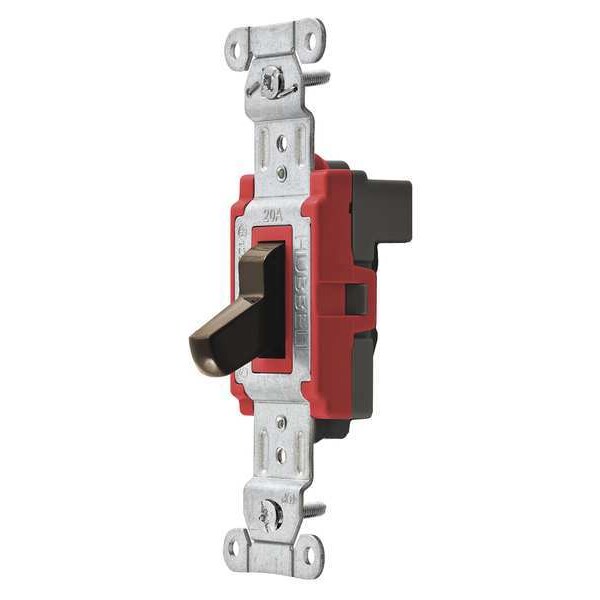

Hubbell Wiring Device-Kellems Wall Swtch, 1-Pole, 120/277V, 20A, Brn, Toggl SNAP1221BR - main

Wall Swtch, 1-Pole, 120/277V, 20A, Brn, Toggl

  • Mfr # SNAP1221BR

  • Zoro # G4594317

product price: $11.15
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221BR
Zoro #
G4594317
UPC #
783585186672
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Length
4.18 in
Height
1.74 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Brown
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Rated HP
1 to 2
Description/Special Features
Abuse-Resistant Thermoplastic Rocker for Heavy-Duty Applications
Current Rating
20 A
Market
Industrial
Voltage Rating
120/277V AC
Grounding
Grounded
Number of Switches
1
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Wire Connection Type
Modular Wiring
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Features
Automatic Self-Grounding Staple Assures Continuity to Wall Box
Type
Toggle
Style
Single Pole
Toggle Material
Thermoplastic
Toggle Color
Brown
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Max. Continuous Current
20A
Terminals
Brass
Terminal Accommodations
Uses SNAPConnect Connector
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Red
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Material
Thermoplastic
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Series
General Purpose
Voltage Rating Description
120-277 VAC
Amperage Rating
20 A
Item Type
Single Pole Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed

Description

Wall Switch, Color Brown, Current Rating 20 A, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Features Automatic Self-Grounding Staple Assures Continuity to Wall Box, Grounding Grounded, Housing Material Thermoplastic, Market Industrial
