  11. Wall Swtch, 2-Pol, 120/277V, 30A, Ivry, Toggl

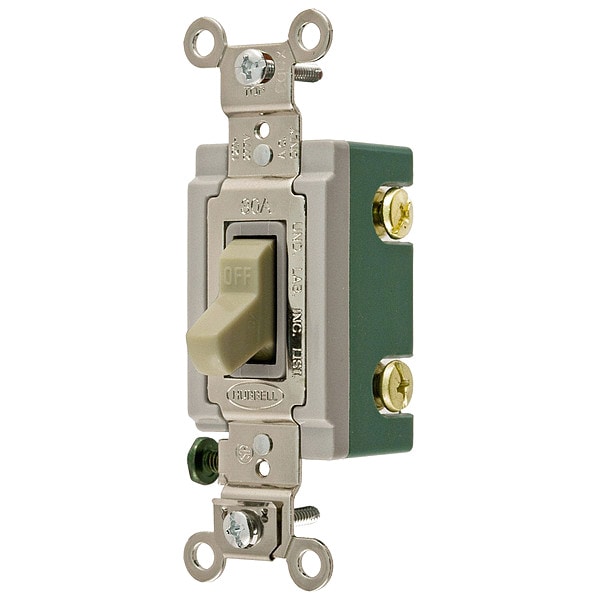

Hubbell Wiring Device-Kellems Wall Swtch, 2-Pol, 120/277V, 30A, Ivry, Toggl HBL3032I - main

Wall Swtch, 2-Pol, 120/277V, 30A, Ivry, Toggl

  • Mfr # HBL3032I

  • Zoro # G0565704

product price: $51.37
/ea

Key Features

Switch Type
Double Pole
Switch Style
Toggle
Amps AC
30 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL3032I
Zoro #
G0565704
UPC #
783585434582
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Height
1.9 in
Overall Width
1.3 in
Minimum Wire Size
14 AWG

Details

Item
Wall Switch
Switch Type
Double Pole
Switch Style
Toggle
Amps AC
30 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Antimicrobial
No
Rated HP
2
Standards
UL Listed
Voltage
120/277V AC
Number of Switches
1
Wire Connection Type
Screw Terminals
Horsepower Rating
2 hp
Switch Material
Nylon
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Voltage Rating
120/277V AC
Current Rating
30 A
Minimum Operating Temperature
-40 Degrees F
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Wiring Style
Back and Side Wired
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Industrial
Amperage
30A
Listing and Certifications
UL Listed and CSA Certified
Flammability
UL 94V-2
Max. Continuous Current
30A
Switch Handle Positions
2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Toggle Color
Ivory
Max. Working Voltage
277V AC
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only

Description

Wall Switch, Color Ivory, Current Rating 30 A, Switch Function Maintained, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
