  11. Wall Swtch, 2-Pol, 3-Positn, Center Off, 20A

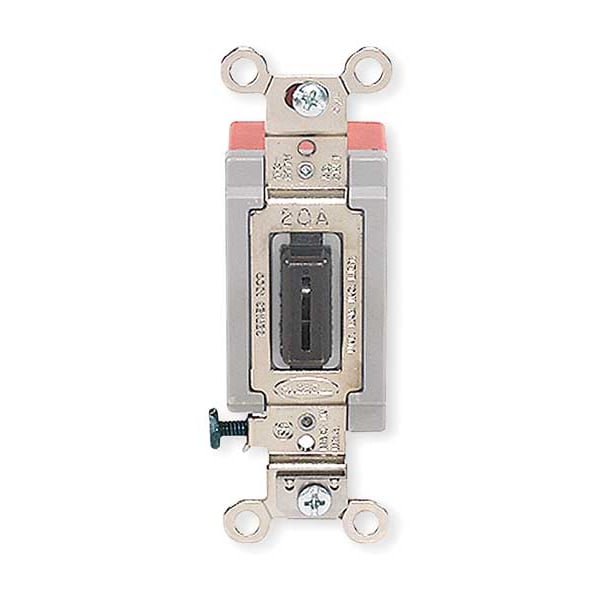

Hubbell Wiring Device-Kellems Wall Swtch, 2-Pol, 3-Positn, Center Off, 20A HBL1386L - main

Wall Swtch, 2-Pol, 3-Positn, Center Off, 20A

  • Mfr # HBL1386L

  • Zoro # G2072427

product price: $107.99
/ea
Free Shipping & Returns

Key Features

Switch Type
Double Pole/Double Throw
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1386L
Zoro #
G2072427
UPC #
783585432687
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Height
1.2 in
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Width
1.31 in
Length
4.06 in
Height
1.19 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.19 in

Details

Item
Wall Switch
Switch Type
Double Pole/Double Throw
Switch Style
Toggle
Amps AC
20 A
Color
Black
Voltage AC
120 to 277
Locking
Yes
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Industrial
Rated HP
1
Standards
UL Listed
Antimicrobial
No
Voltage
120/277V AC
Current Rating
20 A
Voltage Rating
120/277V AC
Number of Switches
1
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Resistance Properties
Impact Resistant
Features
Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring
Type
Toggle
Style
Double Pole Double Throw
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
20A
Product Type
Toggle-switches
Max. Working Voltage
277V AC
Switch Grade
Industrial
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Wiring Style
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Nylon Wall Plate
NP1
Toggle Color
Black
Amperage
20A
Switch Handle Positions
3
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Listing and Certifications
UL Listed and CSA Certified
Temperature Rise
30°C maximum at rated current
Application
Back and Side Wired
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Temperature Rise - Max.
30°C maximum at rated current
Action
DPDT
Series
Extra Heavy Duty
Connectivity
Back and Side Wired
Number Of Poles
Double Pole
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Voltage Rating Description
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute

Description

Wall Switch, Color Black, Current Rating 20 A, Switch Function Maintained, Switch Type Double Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring
