  11. Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount

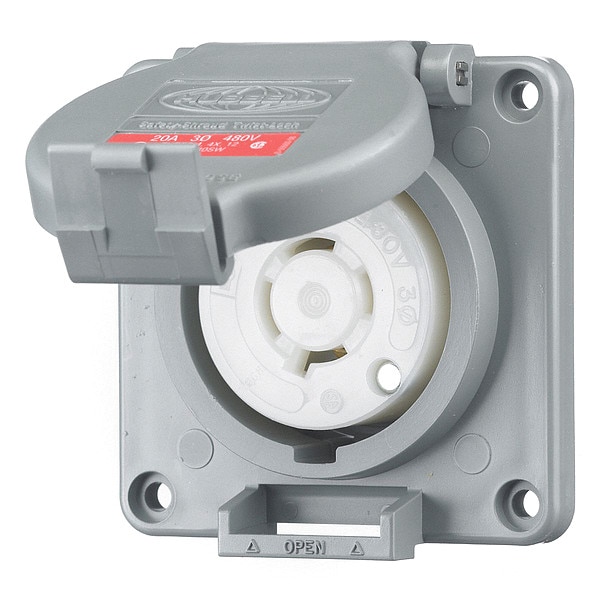

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount HBL2430SW - main

Watertight Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL2430SW

  • Zoro # G1494814

product price: $120.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL2430SW
Zoro #
G1494814
UPC #
783585231426
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Cord Size
16 to 8 AWG
Wire Size
#16 AWG to #8 AWG
Length
3.75 in
Width
3.75 in
Dimensions
3.75 in x 3.75 in x 2.90 in
Height
2.90 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L16-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X
Standards
4X And Type 12, CSA Certified To Type 4, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
Special Features
With Locking Cover
Grade
Industrial
Mounting Type
Flush Mount
Material
Reinforced Nylon
Housing Material
Valox
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Number of Gangs
1
Connection Orientation
Straight
Contact Material
Brass
Horsepower Rating
5 hp
AFCI
No
Minimum Operating Temperature
-40 Degrees F
Retainer Material
Clear Polycarbonate
Gasket Material
Closed-Cell Neoprene Foam
Screw Material
302/304 Stainless Steel
Flange Material
Gray Valox
Dielectric Strength
2000V
Weight
0.65 lb
Flammability
UL 94 V0
Application
Heavy Duty Industrial Shrouded Watertight
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Rating
12, 4, 4X
Amps
20

Description

Watertight Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Gray, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Receptacle Configuration L16-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Shrouded Yes, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type Locking Flip-Up Cover
