  11. Watertight Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount

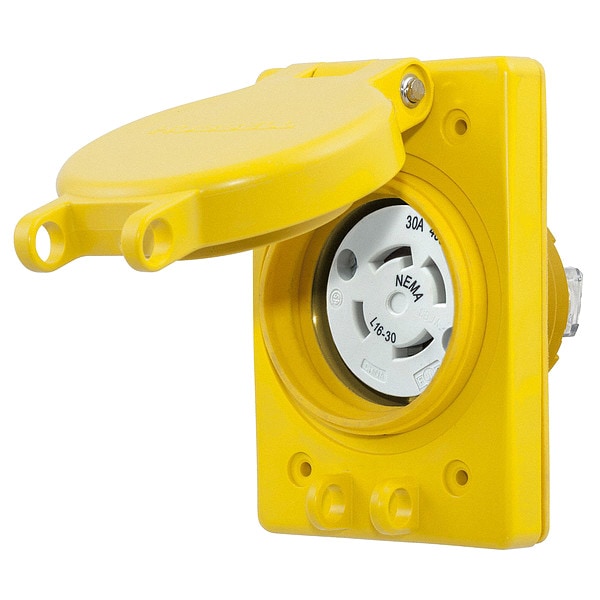

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount HBL69W76 - main

Watertight Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount

  • Mfr # HBL69W76

  • Zoro # G0069846

product price: $160.65
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL69W76
Zoro #
G0069846
UPC #
783585433295
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Wire Size
#18 AWG to #8 AWG
Height
2.92 in
Width
3.10 in
Length
4.56 in
Dimensions
4.56 in x 3.10 in x 2.92 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L16-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
3R, 3RX, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
Special Features
Corrosion resistant
Grade
Industrial
Material
Nylon
Mounting Type
Flush Mount
Insulation Material
Thermoplastic Elastomer
Housing Material
Thermoplastic Elastomer
AFCI
No
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Market
Industrial
Connection Orientation
Straight
Flange Shape
Rectangular
Contact Material
Nickel-Plated Brass
Polarized
Yes
Retainer Material
Clear Polycarbonate
Body Material
PBT
Dielectric Strength
3500V AC
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amperage Rating
30 A
Amps
30
NEMA Rating
3R, 3RX, 4, 4X, 6, 6P

Description

The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for installation in environments requiring watertight and impact-resistant connections. Rated for 30 amps and 480V AC, this three-pole, four-wire receptacle includes a locking configuration (NEMA L16-30R).


Key Features of the HUBBELL 30A Watertight Locking Receptacle:

  • Amperage/Voltage: Rated for 30 A at 480V AC, three-phase

  • NEMA Configuration: L16-30R with polarized design

  • Enclosure Ratings: Meets the following enclosure ratings: NEMA Types 4, 4X, 6, 6P, and 12; IP69K

  • Material Construction: PBT body with thermoplastic elastomer housing and insulation; stainless steel hardware

  • Corrosion Resistance: Includes metallic components with corrosion resistance

  • Wire Accommodation: Accepts #18 AWG to #8 AWG wire sizes via screw terminals

  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)

  • Mount Type & Flange Shape: Flush mount with rectangular flange

  • Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements
