Shop LEVITON

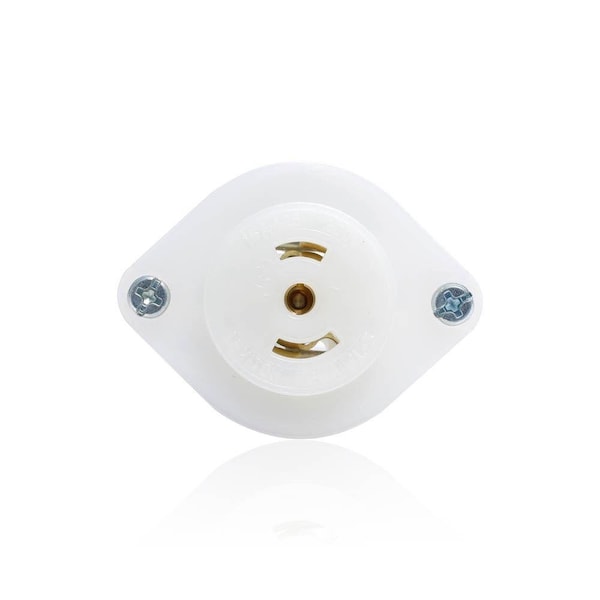

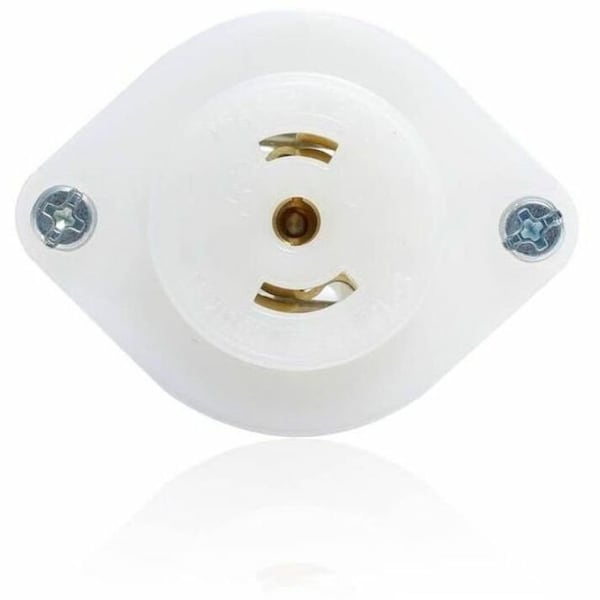

Midget Flanged Locking Receptacle, ML3-15R, 15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount

  • Mfr # ML3-PER

  • Zoro # G615864759

product price:
$
23.25
/ea

Key Features

NEMA Receptacle Configuration
ML3-15R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ML3-PER
Zoro #
G615864759
UPC #
078477987377
Country of Origin
Mexico

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Face Diameter
1.63 in
Mount Hole Center-to-Center Height
3.75 in

Details

Item
Midget Flanged Locking Receptacle
NEMA Receptacle Configuration
ML3-15R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL Fed Spec WC-596, UL498
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Wiring Style
Standard
Contact Material
Brass
IP Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Market
Industrial
For Environment
Dry
Features
One Piece Contacts Reduce Friction and Overheating
Shrouded
Yes
AFCI
No
Midget Locking
Yes
Includes Mounting Hardware
Yes
Number of Outlets
1
Horsepower Rating
1/2 hp
Number of Gangs
1
Series
Hubbell-PRO
Hub Type
Dead End
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
HB

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration ML3-15R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover
