Shop HUBBELL WIRING DEVICE-KELLEMS

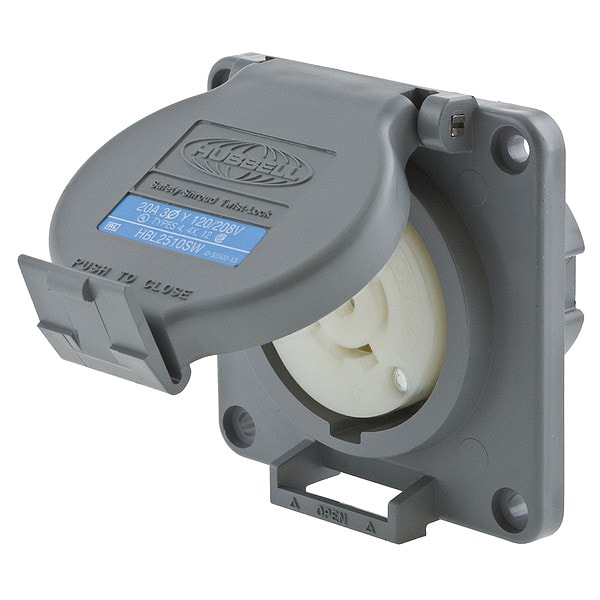

Watertight Flanged Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount

  • Mfr # HBL2510SW

  • Zoro # G1661895

product price:
$
134.73
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL2510SW
Zoro #
G1661895
UPC #
783585231501
Country of Origin
United States
Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L21-20R
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
Flip-Up Cover
Flange Type
Flanged
Standards
CSA Certified Type 4 4X and Type 12, UL Listed
Resistance Properties
Moisture Resistant, Watertight
Wiring Style
Standard
Special Features
With Locking Cover
Material
Reinforced Nylon
Mounting Type
Flush Mount
Grade
Industrial
IP Rating
IP69K
Connection Orientation
Straight
NEMA Enclosure Rating
12, 4, 4X
Number of Gangs
1
Market
Industrial
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
2 hp
Housing Material
Valox
Polarized
Yes
AFCI
No
Gasket Material
Closed-Cell Neoprene Foam
Flammability
UL 94 V2
Retainer Material
Clear Polycarbonate
Screw Material
302/304 Stainless Steel
Dielectric Strength
2000V
Weight
0.65 lb
Amps
20
NEMA Rating
12, 4, 4X
UL 94 Flammability Rating
V-2

Description

Watertight Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Type Non-Flanged, Housing Color Gray, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Receptacle Configuration L21-20R, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Three, Polarized Yes, Shrouded Yes, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type Locking Flip-Up Cover
