Shop HUBBELL WIRING DEVICE-KELLEMS

Locking Receptacle, Non-NEMA, 50 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # HBL25505
  • Zoro # G5170627
product price:
$
2,381.40
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL25505
Zoro #
G5170627
UPC #
783585016030
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black, Gray
Mount Type
Flush
Cover Type
Spring Loaded Shutter
Flange Type
Flanged
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Wiring Style
Standard
IP Rating
IP30
Grade
Hospital Grade
Special Features
With Stainless Steel Plate
Material
Nylon
Mounting Type
Flush Mount
NEMA Enclosure Rating
3R
Connection Orientation
Straight
AFCI
No
For Location
Indoor
Number of Gangs
1
Flange Shape
Rectangular
Polarized
Yes
Shrouded
No
For Environment
Dry
Housing Material
Stainless Steel
Lock Type
mobile-xray
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Amperage Rating
50 A
Application
Mobile X-Ray Devices
Wattage
12500
NEMA Rating
3R
Amps
50

Description

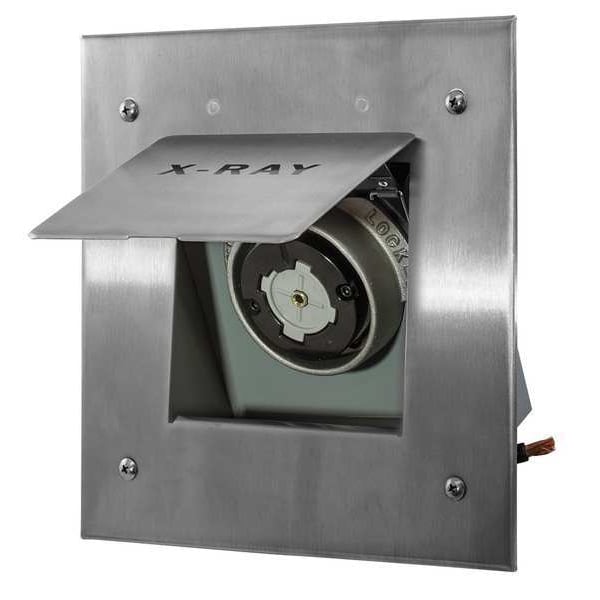

The HUBBELL 50A Hospital Locking Receptacle is a single, flush-mount electrical receptacle suitable for use with mobile X-ray devices and other applications that require a secure, high-capacity connection. Rated for 50 amps and 250V AC, this hospital-grade device features a non-NEMA configuration with two poles and three wires. The receptacle includes a stainless steel plate and is constructed from impact-resistant nylon with screw terminal connections.


Key Features of the HUBBELL 50A Hospital Locking Receptacle:

  • Amperage/Voltage: Rated for 50 A at 250V AC

  • Configuration: Non-NEMA, polarized, single-phase; two poles, three wires

  • Mounting Type: Flush mount with rectangular flange; screw mounting hardware included

  • Material: Impact-resistant nylon housing with stainless steel plate

  • Wire Size Compatibility: Accepts up to #4 AWG wire via screw terminals

  • NEMA Enclosure Rating/IP Rating: NEMA 3R enclosure rating; IP30 protection level (indoor dry locations unless otherwise protected)

  • Grade/Certification: Hospital grade; CSA certified and UL listed

  • Resistance Properties: Features an impact-resistant housing in demanding settings
