  11. Watertight Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount

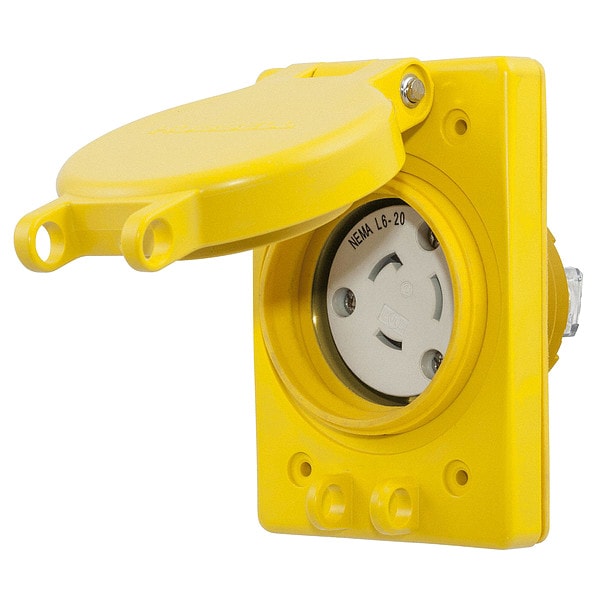

Hubbell Wiring Device-Kellems Watertight Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount HBL67W48 - main

Watertight Flanged Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL67W48

  • Zoro # G9990592

product price: $140.40
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL67W48
Zoro #
G9990592
UPC #
783585433158
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Cord Size
18 to 8 AWG
Wire Size
#18 AWG to #8 AWG
Width
3.10 in
Dimensions
4.56 in x 3.10 in x 2.92 in
Height
2.92 in
Length
4.56 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
IP Rating
IP69K
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Flange Type
Flanged
Wiring Style
Standard
Grade
Industrial
Special Features
Corrosion resistant
Mounting Type
Flush Mount
Material
Nylon
Connection Orientation
Straight
Polarized
Yes
Insulation Material
Thermoplastic Elastomer
Contact Material
Nickel-Plated Brass
AFCI
No
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Flange Shape
Rectangular
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Housing Material
Thermoplastic Elastomer
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
20

Description

The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in environments requiring rated watertight and impact-resistant electrical connections. This receptacle features a lift cover and is suitable for both panel mounting on flat surfaces and installation to FD/FS boxes. It accommodates NEMA L6-20R configurations with 2 poles, 3 wires, rated at 250V AC and 20 amps.


Key Features of the HUBBELL 20A Watertight Locking Receptacle:

  • Watertight Design: Rated IP69K; complies with NEMA enclosure types 4, 4X, 6, 6P, and 12.

  • Impact Resistance: Features a PBT lid, cover plate, and receptacle body.

  • Corrosion Resistant: Includes stainless steel hardware and connection points made from corrosion-resistant materials.

  • Material Construction: Housing made from thermoplastic elastomer; contact material is nickel-plated brass; insulation also uses thermoplastic elastomer.

  • Cord Compatibility: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals (standard wiring style).

  • NEMA Configuration: L6-20R locking configuration with straight connection orientation; polarized design intended to align with compatible connectors.

  • Operating Temperature Range: Suitable for continuous operation from -40°F to +140°F (-40°C to +60°C).

  • Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements; current interrupting per UL498 testing protocols.
