Shop HUBBELL WIRING DEVICE-KELLEMS

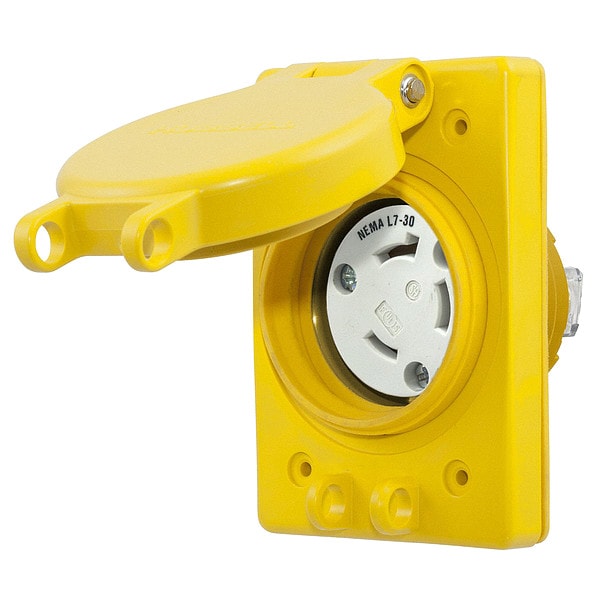

Watertight Flanged Locking Receptacle, L7-30R, 30 A, 277V AC, Single Phase, 2 Pole, Flush Mount

  • Mfr # HBL69W49

  • Zoro # G9990556

product price:
$
155.25
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L7-30R
Current Rating
30 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL69W49
Zoro #
G9990556
UPC #
783585433264
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Cord Size
18 to 8 AWG
Wire Size
#18 AWG to #8 AWG
Dimensions
4.56 in x 3.10 in x 2.92 in
Length
4.56 in
Width
3.10 in
Height
2.92 in

Details

Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
L7-30R
Current Rating
30 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Housing Color
Yellow
Mount Type
Flush
Cover Type
Flip-Up Cover
Flange Type
Flanged
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
NEMA Enclosure Rating
3R, 3RX, 4, 4X, 6, 6P
Grade
Industrial
Special Features
Corrosion resistant
Wiring Style
Standard
Material
Nylon
Mounting Type
Flush Mount
Number of Gangs
1
Market
Industrial
Flange Shape
Rectangular
Polarized
Yes
AFCI
No
Maximum Operating Temperature
140 Degrees F
Contact Material
Nickel-Plated Brass
Insulation Material
Thermoplastic Elastomer
Connection Orientation
Straight
Housing Material
Thermoplastic Elastomer
Minimum Operating Temperature
-40 Degrees F
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
30

Description

The HUBBELL 30A Watertight Locking Receptacle is suitable for use in industrial settings where watertight power connections are specified. This receptacle includes a 2-pole, 3-wire configuration rated for operation at 277V AC; compatible with #18 AWG to #8 AWG conductors. Its construction includes a PBT lid, thermoplastic elastomer housing and insulation, and metallic components. The unit complies with NEMA enclosure ratings (3R, 3RX, 4, 4X, 6, and 6P) and IP69K standard for moisture resistance.


Key Features of the HUBBELL - 30A Watertight Locking Receptacle:

  • NEMA Configuration: L7-30R; locking type; screw terminal wire connection

  • Current/Voltage Rating: Rated at up to 30 A at 277V AC single phase

  • Wire Range: Accepts #18 AWG to #8 AWG conductors

  • Material Construction: Nylon body with thermoplastic elastomer seal; nickel-plated brass contacts; stainless steel hardware

  • Mount Type: Flush mount with rectangular flange shape

  • Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6 & IP69K requirements for watertightness and durability in harsh conditions

  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)

  • Standards Compliance: Conforms to ANSI and NEMA WD-1/WD-6 standards; UL498 current interrupting rated
