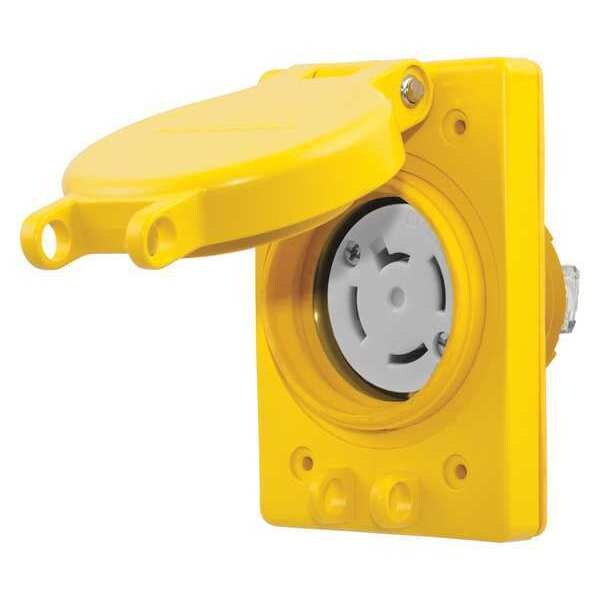

Watertight Flanged Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Yellow

  • Mfr # HBL67W09
  • Zoro # G4572158
product price:
$
151.20
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL67W09
Zoro #
G4572158
UPC #
783585456645
Country of Origin
United States
Item
Watertight Flanged Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Impact Resistant, Watertight
Mounting Type
Flush Mount
Wiring Style
Standard
Grade
Industrial
Material
Impact Modified PBT
IP Rating
IP69K
Special Features
With Cover
Shrouded
Yes
Contact Material
Nickel-Plated Brass
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
AFCI
No
Flange Shape
Rectangular
Housing Material
Thermoplastic Elastomer
NEMA Enclosure Rating
4, 4X, 6P
Market
Industrial
Number of Gangs
1
Polarized
Yes
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
Amps
20
NEMA Rating
4, 4X, 6P

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Cord Size
18 to 8 AWG
Wire Size
#18 AWG to #8 AWG
Length
4.56 in
Width
3.10 in
Height
3.46 in
Dimensions
4.56 in x 3.10 in x 3.46 in

Description

The HUBBELL 20A Watertight Locking Receptacle is a flanged, flush-mount electrical device suitable for use in environments requiring watertight and impact-resistant electrical connections. Featuring a lift cover and constructed from impact-modified PBT with a thermoplastic elastomer seal, this receptacle features construction intended to limit exposure to moisture and environmental elements. It accommodates 4-pole, 4-wire configurations at 120/208V AC and is suitable for panel or FD/FS box mounting.


Key Features of the HUBBELL 20A Watertight Locking Receptacle:

  • Amperage Rating: Rated for 20 A current at 120/208V AC

  • Poles/Wires: Supports four poles and four wires (4P, 4W)

  • Contact Material: Nickel-plated brass contacts

  • Cord Size Compatibility: Accepts wire sizes from #18 AWG to #8 AWG

  • Mounting Type: Flush mount with rectangular flange design

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 4, 4X, 6, and 6P requirements; IP69K rated when in use

  • Operating Temperature Range: -40°F to +140°F (-40°C to +60°C continuous)

  • Resistance Properties: Housing constructed from materials rated for impact resistance; shrouded design with watertight features

  • Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 specifications

  • Special Feature: Includes protective cover
