  11. Watertight Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals

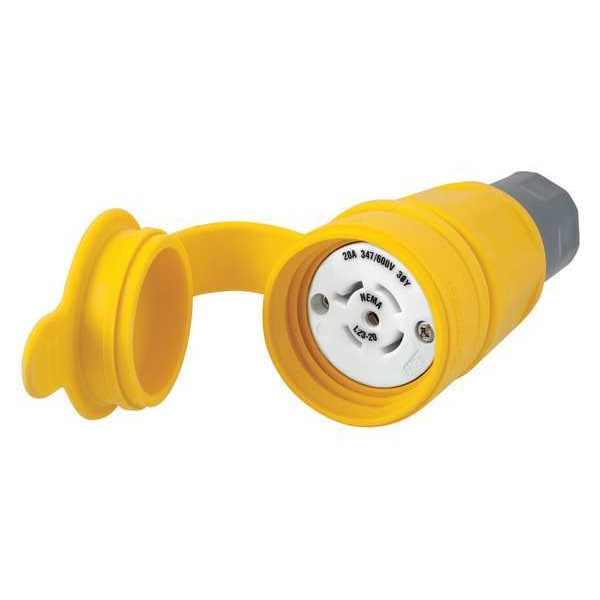

Hubbell Wiring Device-Kellems Watertight Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals HBL27W83 - main

Watertight Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # HBL27W83

  • Zoro # G9990434

product price: $143.10
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL27W83
Zoro #
G9990434
UPC #
783585131863
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Overall Length
2.51 in
Outside Diameter
2.51 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Height
5.69 in
Length
2.51 in
Width
2.51 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 5.69 in

Details

Item
Watertight Locking Connector
NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
IP Rating
IP69K
Standards
Meets NEMA WD-1, WD-6 And ANSI Standards
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Special Features
Corrosion resistant
Material
Thermoplastic Elastomer, Valox
Grade
Industrial
Body Material
Thermoplastic Elastomer
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Midget Locking
No
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Maximum Operating Temperature
140 Degrees F
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Contact Material
Nickel-Plated Brass
Market
Industrial
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
3500V AC
Operating Temp.
-40 to 60°C
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Antimicrobial
No
Power Indicator
No
NEMA Rating
4, 4X, 6, 6P

Description

The HUBBELL 20A Watertight Locking Connector (L23-20R) is a four-pole, five-wire connector suitable for use in industrial and commercial electrical applications where watertight connections are specified. Rated for 347/600VAC and 20 amps, this connector features a smooth thermoplastic elastomer body that features a smooth thermoplastic elastomer body. It is includes stainless steel hardware and connection points; constructed with UV-stabilized materials suitable for demanding environments.


Key Features of the HUBBELL 20A Watertight Locking Connector:

  • Current/Voltage Rating: Rated for 20 amps at 347/600V AC

  • NEMA Configuration: L23-20R; meets NEMA WD-1, WD-6, ANSI standards

  • Enclosure/IP Ratings: NEMA 4, 4X, 6, 6P & IP69K moisture resistance

  • Body/Housing Material: Thermoplastic elastomer with Valox components

  • Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in

  • Operating Temperature Range: -40°C to +60°C continuous use

  • Contact Material: Nickel-plated brass contacts; screw terminal wire connections

  • Resistance Properties: Construction includes components that meet applicable corrosion resistance and UV exposure standards
