Locking Connector, Non-NEMA, 50 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black
Mfr # CS6364
Zoro # G510113129
Key Features
Specifications
Product Information
- MFR #
- CS6364
- Zoro #
- G510113129
- UPC #
- 819145025201
- Country of Origin
- Mexico
Dimensions
- For Minimum Cable Diameter
- 0.83 in
- For Maximum Cable Diameter
- 1.25 in
Details
- Item
- Locking Connector
- NEMA Receptacle Configuration
- Non-NEMA
- Current Rating
- 50 A
- Voltage Rating
- 125/250V AC
- Phase
- Single
- Number of Poles
- 3
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Wiring Style
- Standard
- Connection Orientation
- Straight
- Grounding
- Grounded
- Housing Color
- Black
- Cap Type
- No Cap
- Standards
- cULus
- Resistance Properties
- Chemical Resistant, Impact Resistant, Weather Resistant
- Weight
- 0.7 lb
- Flange Material
- Nylon
- Wattage
- 12500W
- Application
- Female Connector Wiring Device
- Number of Female Connectors
- 1
Description

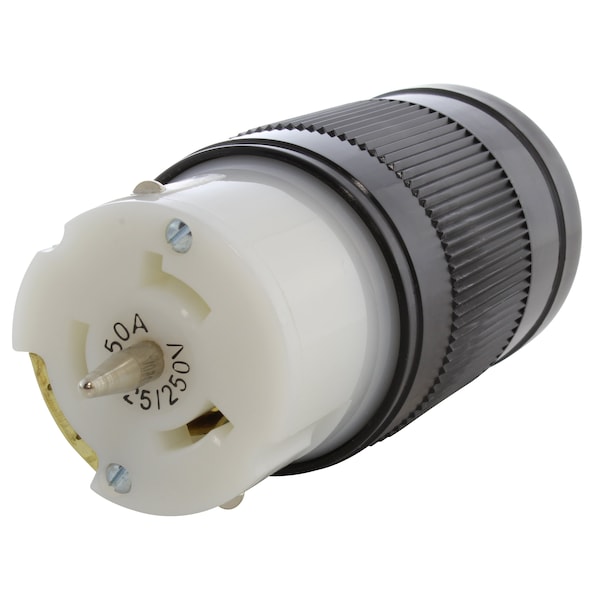

This AC WORKS brand wiring device (model CS6364) is a durable 50‐amp, 125/250‐volt locking female connector designed for industrial and commercial environments. The rugged housing withstands impacts, chemicals, and harsh weather conditions, making it ideal for heavy‐duty applications, cord repair, and custom power‐cord builds. The connector features a weather‐tight seal and a strain‐relief structure compatible with SJT, SJO, SOOW, and STW 10/4, 8/4, 6/4, or larger cable, ensuring a secure and reliable installation. The locking configuration prevents accidental unplugging during operation. This wiring device is UL E57672 and CSA 81290 approved, compatible with the CS6365 plug and CS6375 inlet, and backed by a 1‐year limited warranty.
- CS6364 50A 125/250V locking female connector
- Weather‐tight seal for outdoor and industrial environments
- Strain‐relief structure supports 10/4, 8/4, 6/4, or larger cable
- Locking design prevents accidental disconnects
- UL E57672 and CSA 81290 safety approvals
- Compatible with CS6365 plug and CS6375 inlet
- Includes 1‐year limited warranty
