Watertight Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals

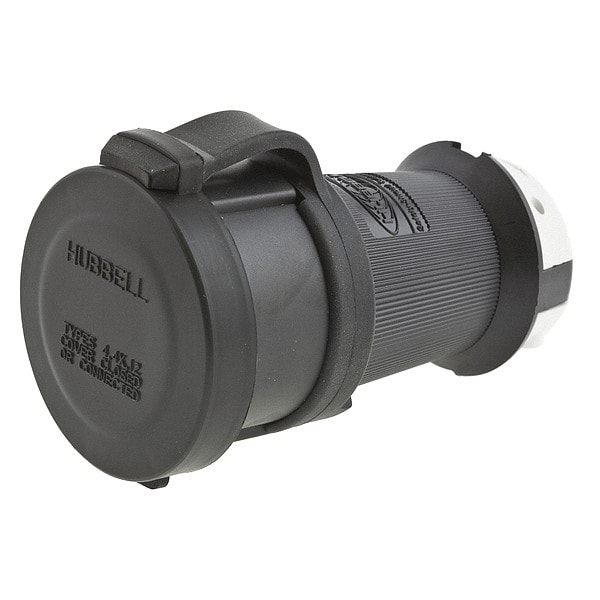

The HUBBELL 30A Watertight Twist-Lock Connector (L5-30R) is a locking connector with a shrouded design and rated watertight performance designed for industrial and commercial electrical connections. It features a one-piece engineered thermoplastic housing that is impact resistant, with an environmental seal meets NEMA 4X and IP66 ratings when in use. The device includes a press-on closure cap to maintain the seal when not connected, and its cord grip designed to reduce strain on wire terminations helps protect wire terminations from excess strain.

Key Features of the HUBBELL 30A Watertight Twist-Lock Connector:

• Current/Voltage Rating: Rated for 30 A at 125V AC single phase


• NEMA Configuration: L5-30R receptacle with straight connection orientation


• Cord Size Compatibility: Accepts cable diameters from 0.36 in to 0.93 in; supports wire sizes from 16 AWG to 8 AWG


• Material Construction: Housing made of Valox (impact modified PBT); brass contacts; stainless steel screws; clear polycarbonate retainer


• Insulation & Flammability: Thermoplastic insulation material; UL94 V-0 flammability rating


• Temperature Range: Operates between -40°C and +75°C with a maximum temperature rise of 30°C


• NEMA Enclosure/IP Rating: Suitable for Type 12, Type 4, Type 4X enclosures; IP66 rated watertight performance


• Wire Connection Type: Screw terminals using standard wiring style


• Resistance Properties: Impact resistant, moisture resistant, watertight construction suitable for demanding environments


• Standards Compliance: CSA Certified Types 4, 4X & Type12; UL Listed product standards met
