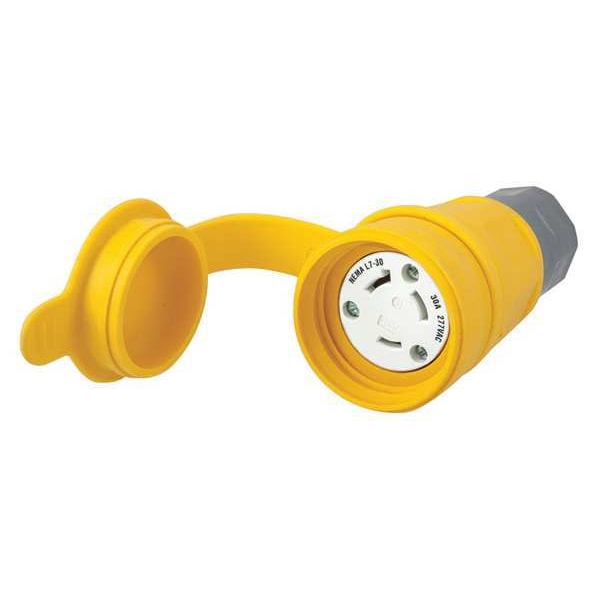

Watertight Locking Connector, L7-30R, 30 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Yellow
Mfr # HBL29W49
Zoro # G9990687
product price: $130.95
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
L7-30R
Current Rating
30 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL29W49
Zoro #
G9990687
UPC #
783585131535
Country of Origin
United States
Dimensions
For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.375 in to 1.125 in
Outside Diameter
2.77 in
Overall Length
2.77 in
Minimum Wire Size
18 AWG
Maximum Wire Size
8 AWG
Height
5.67 in
Width
2.77 in
Length
2.77 in
Dimensions
2.77 in x 2.77 in x 5.67 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Description
The HUBBELL 30A Watertight Locking Connector (L7-30R) is a two-pole, three-wire connector suitable for use in industrial and commercial settings. Rated for 277V AC and 30 amps, this watertight device features a smooth thermoplastic elastomer body intended to facilitate cleaning procedures. The strain relief nut is integrated with the body design to reduce areas where debris can accumulate, while stainless steel hardware includes at connection points.
Key Features of the HUBBELL 30A Watertight Locking Connector:
- Body/Housing Material: Thermoplastic elastomer with Valox components included in construction
- Bushing Material: Black elastomer
- Contact Material: Nickel-plated brass
- Cord Accommodation: Accepts cord sizes from 0.375 in to 1.125 in diameter
- NEMA Configuration/Rating: L7-30R; NEMA enclosure ratings of 4, 4X, 6, 6P, and 12; IP69K rated
- Operating Temperature Range: -40°C to +60°C continuous use
- Wire Size Compatibility: Supports wire sizes from minimum cords (12/3 SJ up to max cord size of 8/3 S)
- Electrical Performance: Dielectric strength of up to 2500V AC; temperature rise limited to maximum of +30°C per UL498 at rated current
- UV Resistance: All exposed materials are UV stabilized
- Connection Type: Screw terminals with straight orientation; grounded design with shrouded construction
- Standards Compliance: Meets NEMA WD-1, WD-6 and ANSI standards; UL listed performance attributes included
