  11. Watertight Locking Plug, L16-20P, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black

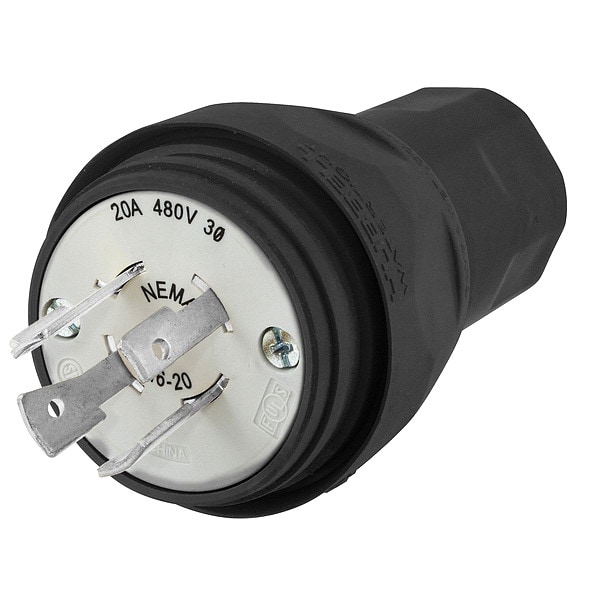

Hubbell Wiring Device-Kellems Watertight Locking Plug, L16-20P, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black HBL26W76BK - main

Watertight Locking Plug, L16-20P, 20 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL26W76BK

  • Zoro # G0070029

product price: $80.33
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
L16-20P
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL26W76BK
Zoro #
G0070029
UPC #
783585131658
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.875 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Outside Diameter
2.51 in
Body Length
2.51 in
Height
3.96 in
Width
2.51 in
Length
2.51 in
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Dimensions
2.51 in x 2.51 in x 3.96 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L16-20P
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Grade
Industrial
Special Features
Moisture, Dust and Weather Resistant
Material
Thermoplastic Elastomer, Valox
Horsepower Rating
5 hp
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Blade Material
Brass
Body Material
Thermoplastic Elastomer
Contact Material
Nickel Plated Brass
Dielectric Strength
3500V AC
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
Amperage Rating
20 A
Amps
20
Antimicrobial
No

Description

Watertight Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L16-20P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.875 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
