Shop HUBBELL WIRING DEVICE-KELLEMS

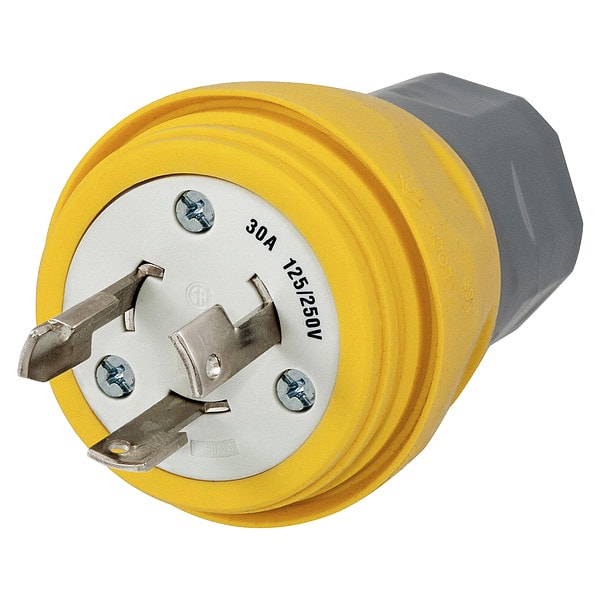

Watertight Locking Plug, Non-NEMA, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Yellow

  • Mfr # HBL28W08

  • Zoro # G0069791

product price:
$
76.41
/ea

Key Features

Current Rating
30 A
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL28W08
Zoro #
G0069791
UPC #
783585456393
Country of Origin
Multiple

Dimensions

Cord Size
0.375 in to 1.125 in
For Minimum Cable Diameter
0.375 in
Outside Diameter
2.77 in
For Maximum Cable Diameter
1 in
Body Length
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 3.94 in
Height
3.94 in
Width
2.77 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Overall Length
2.77 in
Wire Rope Length
2.77 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
Non-NEMA
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
IP Rating
IP69K
Material
Thermoplastic Elastomer, Valox
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
Housing Material
Thermoplastic Elastomer
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Blade Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Body Material
Thermoplastic Elastomer
Bushing Material
Black Elastomer
Retainer Material
Clear Polycarbonate
Dielectric Strength
2500V AC
Contact Material
Nickel Plated Brass
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Amperage Rating
30 A
Amps
30
NEMA Configuration
Non-NEMA
Antimicrobial
No

Description

Watertight Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration Non-NEMA, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
