  11. Watertight Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

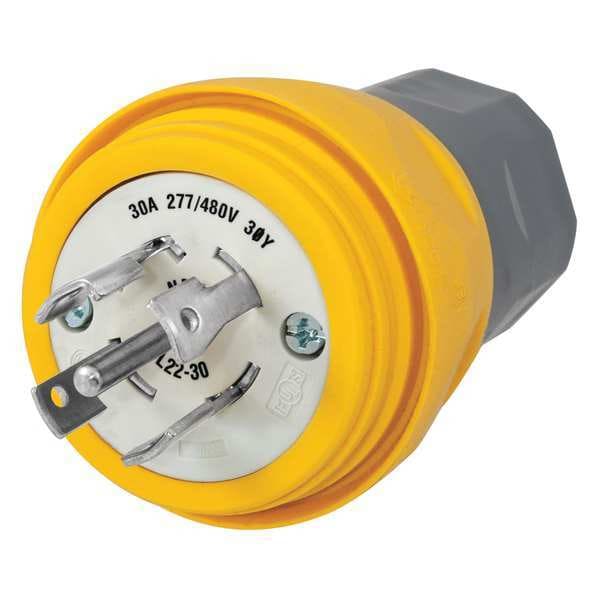

Hubbell Wiring Device-Kellems Watertight Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Yellow HBL28W82 - main

Watertight Locking Plug, L22-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Yellow

  • Mfr # HBL28W82

  • Zoro # G0069645

product price: $98.62
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL28W82
Zoro #
G0069645
UPC #
783585131771
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.325 in to 0.875 in
Outside Diameter
2.77 in
Body Length
2.77 in
Length
2.77 in
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Dimensions
2.77 in x 2.77 in x 3.94 in
Height
3.94 in
Width
2.77 in

Details

Item
Watertight Locking Plug
NEMA Plug Configuration
L22-30P
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Number of Blades
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
ANSI, NEMA WD-1 and WD-6
Resistance Properties
Chemical Resistant, Impact Resistant, UV Resistant, Watertight
Special Features
Moisture, Dust and Weather Resistant
Material
Thermoplastic Elastomer, Valox
Grade
Industrial
Polarized
Yes
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
10 hp
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Retainer Material
Clear Polycarbonate
Bushing Material
Black Elastomer
Dielectric Strength
3500V AC
Contact Material
Nickel Plated Brass
Body Material
Thermoplastic Elastomer
Performance
Electrical - Current Interrupting - Rated for current interruption per UL498 Electrical - Dielectric Voltage - 2500V AC Electrical - Max Working Voltage - As marked Electrical - Temperature Rise - 30°C max per UL498 at rated current Environmental - UV resistance - All exposed materials are UV stabilized Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
Amperage Rating
30 A
Antimicrobial
No
NEMA Configuration
L22-30
Amps
30

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L22-30P, Number of Blades 5, Number of Poles 4, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Watertight, Voltage Rating 277/480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
