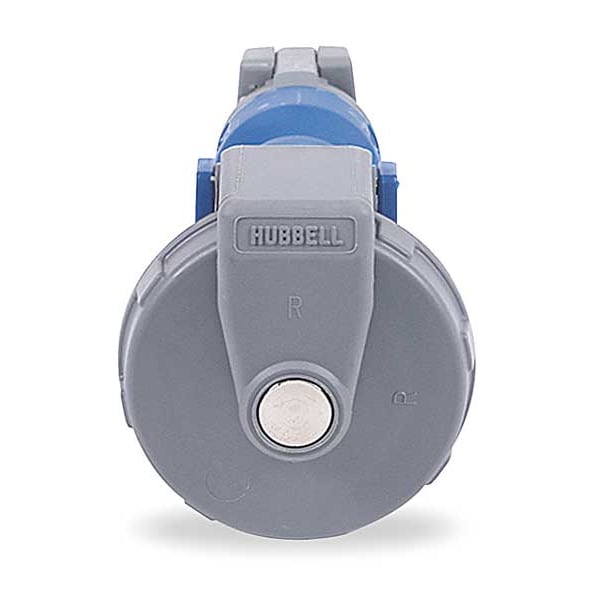

Watertight Pin & Sleeve Connector, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue

  • Mfr # HBL520C9W

  • Zoro # G2148167

product price:  $297.00
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL520C9W
Zoro #
G2148167
UPC #
783585405315
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.83 in
For Minimum Cable Diameter
0.33 in
Overall Length
8.24 in
Outside Diameter
3.71 in
Maximum Wire Size
10 AWG
Face Diameter
3.48 in
Minimum Wire Size
14 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 801 Nylon
HP
1/2 hp
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Body Material
Zytel 801 Nylon
Application
High Ampacity Connections
Shrouded
Yes
Reverse Service
No
Horsepower Rating
3 hp
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Compatible with Series
HBL Heavy Duty
Maximum Operating Temperature
75 Degrees C
Housing Material
PBT
Housing Material Grade
Zytel 801
Power Indicating Light
No
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
#14 AWG to #10 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Series
HBL Heavy Duty
Number Of Conductors
5-Wire Grounding
Style
Standard Service
Environmental Conditions
Watertight
Insulation
Insulated Body
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Connector is a rated IP68/IP69K for ingress protection electrical connector intended for use in industrial applications requiring 20 A, 120/208V AC three-phase connections. It has a Zytel 801 nylon body with a non-metallic housing. It is compatible with the HBL Heavy Duty series and uses pressure terminal screws for secure connectivity. The connector meets multiple industry standards including CSA Certified LR280C and UL Classified to IEC 60309-1/2.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current Rating: Rated for 20 A at 120/208V AC, suitable for three-phase applications

  • Body Material: Zytel 801 nylon construction

  • Environmental Conditions: Rated IP68/IP69K ingress protection

  • Cord Grip: External cord grip designed to provide strain relief

  • Wire Connection Type: Screw terminals accommodate #14 AWG to #10 AWG wire sizes

  • Number of Poles/Wires: Four poles, five wires (grounding)

  • Housing Features: Blue color-coded housing allows easy voltage identification; self-closing gasketed cover; shrouded design

  • Temperature Range: Operates from -40°C to +75°C (continuous)

  • Standards Compliance: Meets CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 requirements
