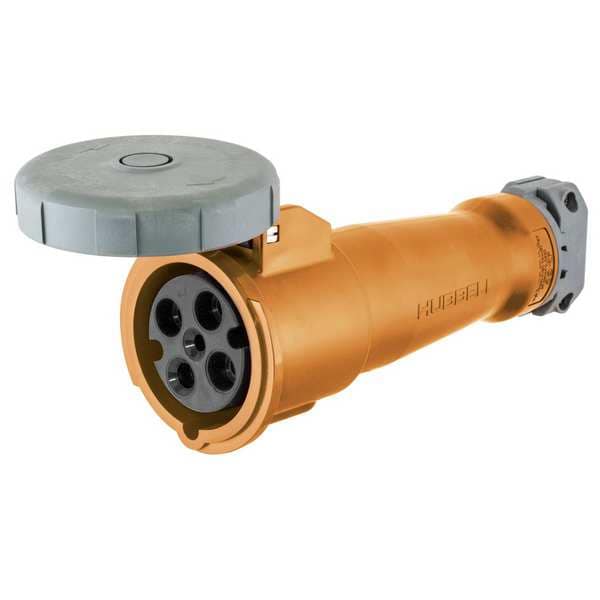

Watertight Pin & Sleeve Connector, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange

  • Mfr # HBL420C12W

  • Zoro # G3161846

product price:
$
264.99
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL420C12W
Zoro #
G3161846
UPC #
783585404288
Country of Origin
United States

Dimensions

Overall Length
7.57 in
Outside Diameter
3.43 in
Minimum Wire Size
14 AWG
For Maximum Cable Diameter
0.83 in
Maximum Wire Size
10 AWG
For Minimum Cable Diameter
0.33 in
Display Size
Standard
Wire Rope Length
7.57 in

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Orange
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Insulated Non-Metallic Housing, Self-Closing Gasketed Cover
Application
High Ampacity Connections
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Housing Material
PBT
Horsepower Rating
2 hp
Compatible with Series
HBL Heavy Duty
Housing Material Grade
Zytel 801
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
Power Indicating Light
No
Shrouded
Yes
Series
HBL Heavy Duty
Number Of Conductors
4-Wire Grounding
Style
Standard Service
Conductor Range
#14 AWG to #10 AWG
Environmental Conditions
Watertight
Insulation
Insulated Body
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Connection Type
Screw Terminals
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Connector is a electrical connector rated for 20A and 125/250V AC, suitable for use in industrial environments. Rated for 20A and 125/250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT; see specifications for environmental ratings. It supports single-phase operation with four-wire grounding and accommodates conductor sizes from #14 AWG to #10 AWG. The device uses pressure terminal screws used to connect conductors and includes color-coded housings correspond to voltage rating per manufacturer specification.


Key Features of the HUBBELL IEC Pin & Sleeve Connector:

  • Current/Voltage Rating: 20A, 125/250V AC

  • Body Material: Zytel 801 Nylon; Housing Material Grade: Zytel 801

  • Environmental Conditions: Rated IP68/IP69K. See product specifications regarding material properties.

  • Cord Mounted with spring-loaded cap included; see product documentation regarding enclosure features

  • Conductor Range: Accepts #14 AWG to #10 AWG wire sizes via screw terminals

  • Number of Poles/Wires: 3 poles / 4 wires (grounded)

  • Temperature Rating: -40°C minimum (w/o impact) to +75°C maximum continuous use

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033

  • Series Compatibility: HBL Heavy Duty series connectors
